J.I. Case VAI
|
|
| Production | |
| Manufacturer | J.I. Case |
| Industrial tractor | |
| J.I. Case VAI Engines | |
| J.I. Case 2.0L 4-cyl distillate | |
| J.I. Case 2.0L 4-cyl gasoline | |
| Fuel tank | 9.25 gal 35.0 L |
 Engine details ... | |
| J.I. Case VAI Transmission | |
| 4-speed gear | |
 Transmission details ... |
| J.I. Case VAI Power | |
| Drawbar (claimed) | 13 hp 9.7 kW |
| PTO (claimed) | 17 hp 12.7 kW |
| Mechanical | |
| Two-wheel drive | |
| Final drives | spur gear |
| Manual steering | |
| Open operator station. | |
| Photos | |
 | |

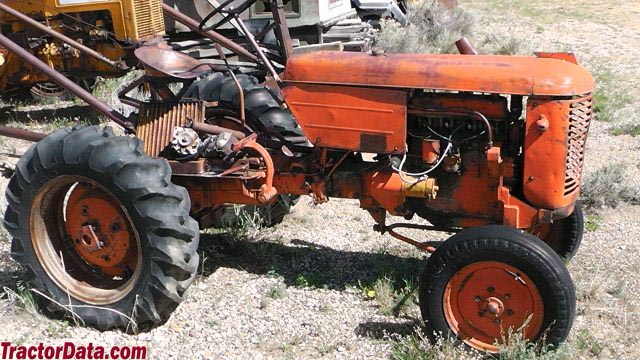

 J.I. Case VAI photos... | |
| Tractor hitch | |
| Type | Case Eagle Hitch OptOptional |
| Power Take-off (PTO) | |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 525@1425 |
| Dimensions & Tires | |
| Weight | 2550 lbs 1156 kg |
 Full dimensions and tires ... | |
| VAI Serial Numbers | |
| 1942 | 4600001 |
| 1943 | 4700001 |
| 1944 | 4800001 |
| 1945 | 4900001 |
| 1946 | 5000001 |
| 1947 | 5100001 |
| 1948 | 5200001 |
| 1949 | 5300001 |
| 1950 | 5400001 |
| 1951 | 5500001 |
| 1952 | 5600001 |
| 1953 | 5700001 |
| 1954 | 5800001 |
| 1955 | 5900001 |
FAQ: How to read a serial number table. | |
| Links | |
| Case VA series: information from YTMag |
| Belt Pulley | |
| Diameter | 10.25 inches 26 cm |
| Width | 6 inches 15 cm |
| RPM | 969 |
| Electrical | |
| Ground | positive |
| Battery volts | 6 |
| References | |
 | |
| Model "VAI" Industrial Tractor published in 1947, by J.I. Case |
