Tractors > CaseIH > Magnum 380

CaseIH Magnum 380 Tests



CaseIH Magnum 380 tractor photo
2014 - 2025
Model year
Magnum Series
Row-Crop tractor
Series map:
Magnum 340
Magnum 380
340.0hp
380.0hp
OCED Tractor Test 2126

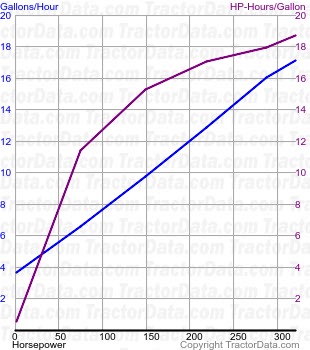

Magnum 380 fuel use from test 982
OCED Tractor Test 2126
Diesel CVT 4WD
May 19 - June 12, 2015
Link: OCED Tractor Test 2126 file
PTO performance
Max power372.40 hp
277.7 kW
Fuel use19.5 gal/hour
73.8 l/hour
Power at rated engine speed320.21 hp
238.8 kW
Fuel use17.1 gal/hour
64.7 l/hour
Power at rated PTO speed371.45 hp
277.0 kW
Fuel use19.5 gal/hour
73.8 l/hour
Drawbar performance
Max power274.79 hp
204.9 kW
Fuel use17.2 gal/hour
65.1 l/hour
Pull at 9 KPH
Max pull29017 lbs
13162 kg
Pull at 5.8 KPH
