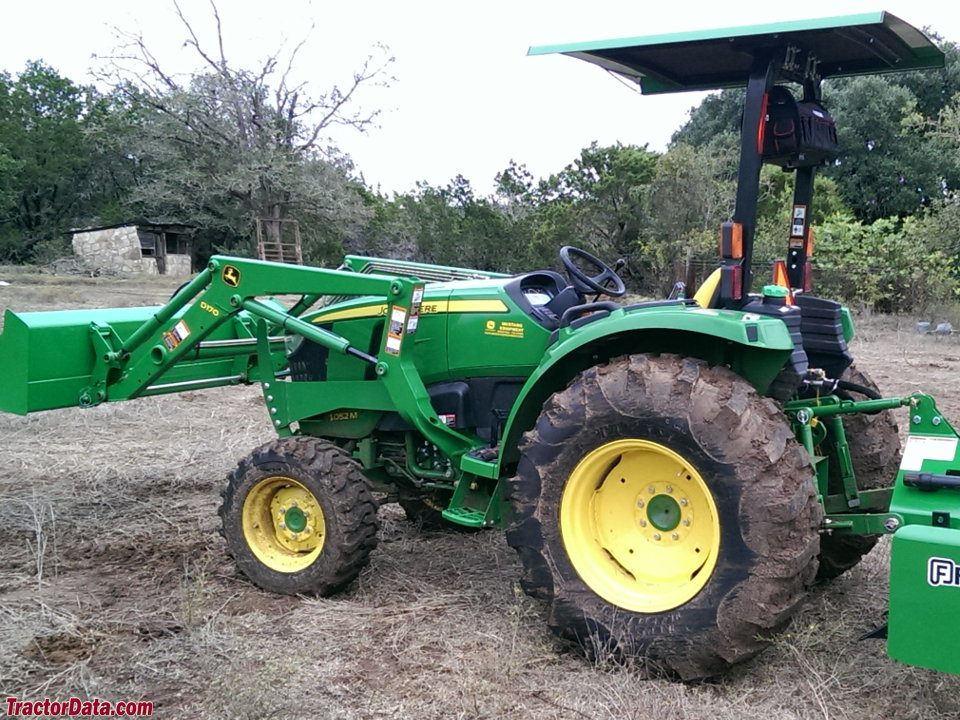

John Deere 4052M
| | 2014 - |
| 4M Series | | Compact Utility tractor |
|
| Production |
| Manufacturer | John Deere
|
| Compact Utility tractor |
| Built in Augusta, Georgia, USA |
| John Deere 4052M Power |
| Engine (gross) | 50.8 hp
37.9 kW
|
| Gear PTO (claimed) | 40.8 hp*Sales brochure lists 42.2
30.4 kW
|
| Hydro PTO (claimed) | 39.1 hp*Sales brochure lists 41.2
29.2 kW
|
| Mechanical |
| Four-wheel drive |
| Final drives | planetary
|
| Differential lock | mechanical rear
|
| Power steering |
| Hydraulic wet disc brakes |
| Two-post folding ROPS. |
| Hydraulics |
| Type | open center
|
| Pressure | 2500 psi
172.4 bar
|
| Pump flow | 10.2 gpm
38.6 lpm
|
| Total flow | 15.9 gpm
60.2 lpm
|
| Steering flow | 5.7 gpm
21.6 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Control | position control
|
| Rear lift (at ends) | 3130 lbs
1419 kg
|
| Rear lift (at 24"/610mm) | 2500 lbs
1134 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540 (1.375)
|
| Engine RPM | 540@2600
|
| 4052M Serial Number Location |
 |
| Serial number plate on the right side of the 4052M tractor frame, above the front axle. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 75
|
| Battery CCA | 770
|
| Battery volts | 12
|
| References |
 |
| 4 Family published in 2015, by John Deere |
| 4 Family published in 2017, by John Deere |
| 4 Series published in 2020, by John Deere |
| 4 Series published in 2023, by John Deere |
| Operator's Manual 4 Series (OMTR11452) published in 2019* |
| Operator's Manual 4 Series (OMTR130411) published in 2023* |
| *Publication contains known errors. |
