J.I. Case 310E
|
|
| Production | |
| Manufacturer | J.I. Case |
| Agricultural Crawler tractor | |
| J.I. Case 310E Engines | |
| J.I. Case 3.1L 4-cyl diesel | |
| J.I. Case 2.4L 4-cyl diesel | |
 Engine details ... |
| J.I. Case 310E Transmission | |
| 3-speed gear | |
 Transmission details ... |
| J.I. Case 310E Power | |
| Engine | 42 hp 31.3 kW |
| Drawbar (claimed) | 30 hp 22.4 kW |
| Belt (claimed) | 36 hp 26.8 kW |
| Plows | 3 |
| Drawbar (tested) | 29.56 hp 22.0 kW |
| PTO (tested) | 36.89 hp 27.5 kW |
 Performance test details ... | |
| Mechanical | |
| Drive | crawler |
| Contracting band brakes | |
| Open operator station. | |

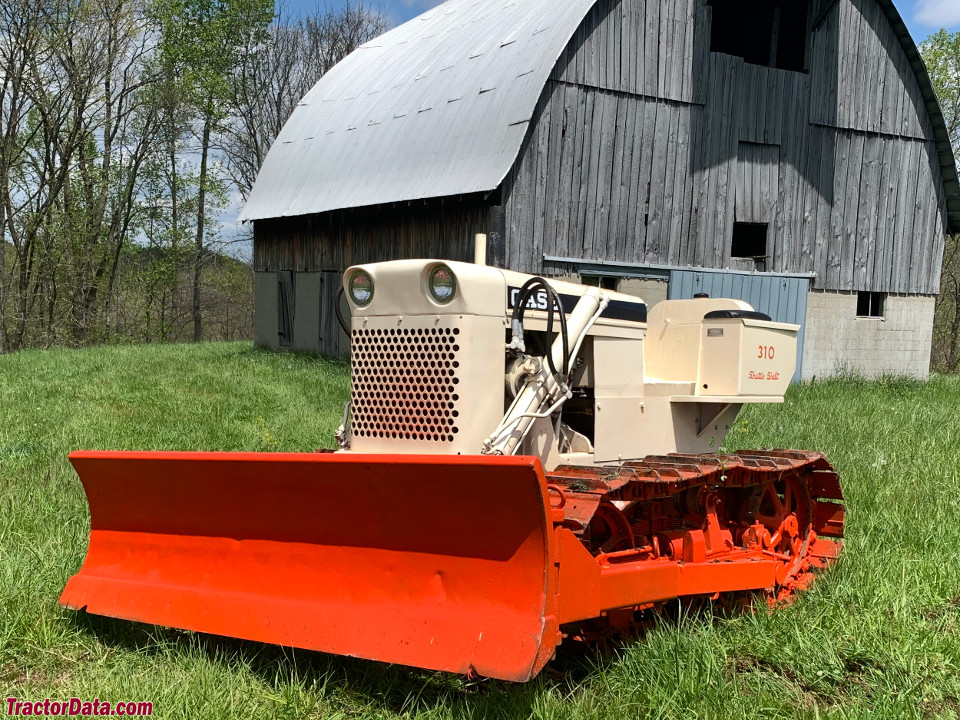

| Photos | |
 | |
 J.I. Case 310E photos... | |
| Capacity | |
| Fuel | 17 gal 64.3 L |
| Hydraulic system | 9 gal 34.1 L |
| Hydraulics | |
| Type | open center |
| Capacity | 9 gal 34.1 L |
| Pressure | 1500 psi 103.4 bar |
| Pump flow | 15 gpm 56.8 lpm |
| Tractor hitch | |
| Rear lift | 700 lbs 317 kg |
| Power Take-off (PTO) | |
| Rear RPM | 540 (1.375) |
| Engine RPM | 540@1727 |
| Dimensions & Tracks | |
| Wheelbase | 57 inches 144 cm |
| Weight | 5300 to 7545 pounds |
| 14-inch tracks | |
 Full dimensions and tracks ... | |
| Belt Pulley | |
| Diameter | 8.5 inches 21 cm |
| Width | 6.5 inches 16 cm |
| RPM | 1160 |
| Speed | 2581 ft/min 786.69 meters/min |

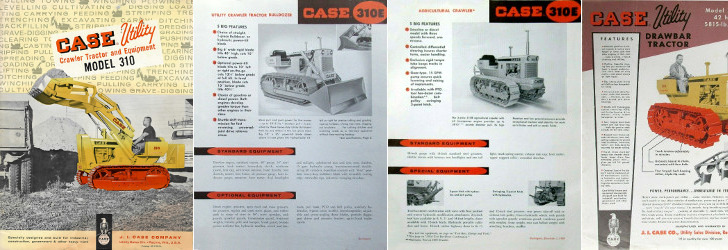

| References | |
 | |
| 310E Agricultural Crawler published in 1960, by J.I. Case | |
| Model 310E Crawler published in 1961, by J.I. Case |
