Tractors > J.I. Case > 310E

J.I. Case 310E Tests



J.I. Case 310E tractor photo
1961 - 1962
Agricultural Crawler tractor
Series map:
310E
40.0hp
Nebraska Tractor Test 805

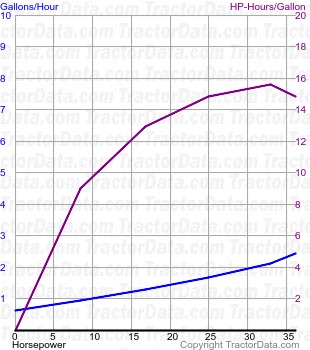

310E fuel use from test 805
Nebraska Tractor Test 805
Diesel 3-speed crawler
July 25 - August 16, 1961
Link: Nebraska Tractor Test 805 file
PTO performance
Power at rated engine speed36.89 hp
27.5 kW
Fuel use2.5 gal/hour
9.5 l/hour
Power at rated PTO speed34.96 hp
26.1 kW
Fuel use2.3 gal/hour
8.7 l/hour
Drawbar performance
Max power29.56 hp
22.0 kW
Fuel use2.4 gal/hour
9.1 l/hour
Gear 2 used for power test.
Max pull7061 lbs
3202 kg
Gear 1 used for pull test.
