New Holland T4.105

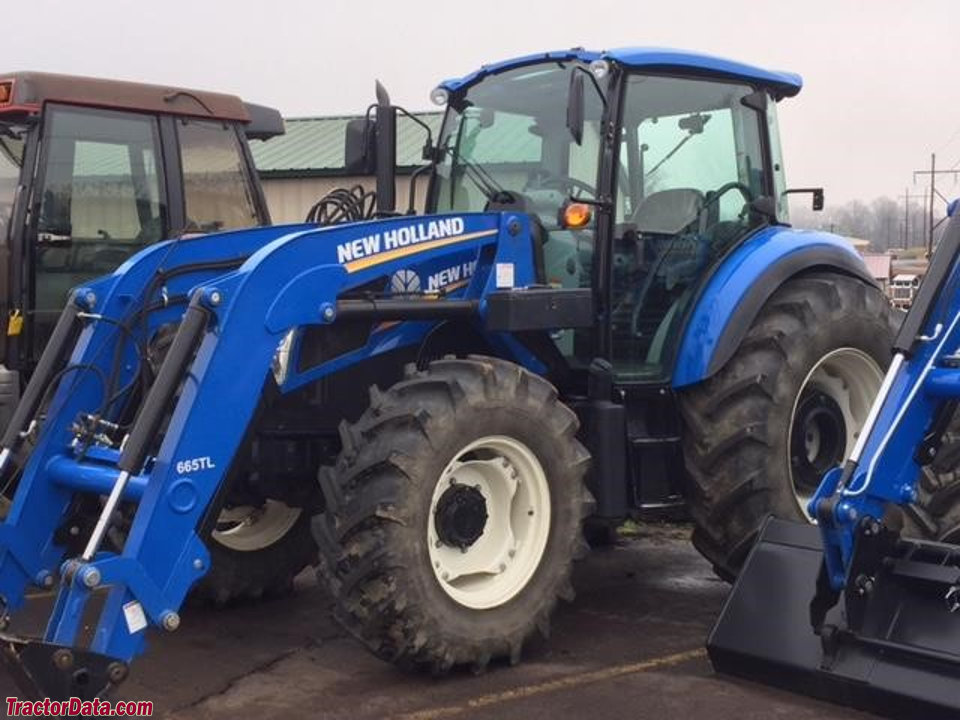

New Holland T4.105 tractor photo
2013 - 2014
T4 Series
Utility tractor
T4040
Series:T4.95T4.105T4.115
T4.110
Production
Manufacturer:New Holland
Type:Utility tractor
New Holland T4.105 Power
Engine (gross):106 hp
79.0 kW
PTO (claimed):91 hp
67.9 kW
Drawbar (tested):59.8 hp
44.6 kW
PTO (tested):94.4 hp
70.4 kW
power test details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Cab:Two-post ROPS with available FOPS canopy. Optional VisionView Cab with air-conditioning.
Transmissions:12-speed mechanical shuttle
 20-speed mechanical shuttle with creeper
 12-speed power shuttle
 20-speed power shuttle with creeper
Transmission details ...
Hydraulics
Type:open center
Rear valves:1 to 3
Pump flow:12.5 gpm
47.3 lpm
 16.9 gpm
64.0 lpm (optional)
Steering flow:7.3 gpm
27.6 lpm
 9.7 gpm
36.7 lpm (optional)
Tractor hitch
Rear Type:II
Rear lift (at 24"/610mm):5620 lbs
2549 kg
 7351 lbs
3334 kg (optional)
Power Take-off (PTO)
Rear RPM:540/1000
 540
Dimensions & Tires
2WD Wheelbase:90.2 inches
229 cm
4WD Wheelbase:87.9 inches
223 cm
Weight:6768 to 7936 pounds
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
