Tractors > TYM > 4820

TYM 4820



TYM 4820 tractor photo
2024 -
4 Series
Compact Utility tractor
Series map:
4820
TS115A
48.0hp
115.0hp
Production
ManufacturerTYM
Compact Utility tractor
TYM 4820 Engine
TYM 2.3L 4-cyl diesel
Engine details ...
TYM 4820 Transmissions
16-speed synchronized shuttle
hydrostatic
Transmission details ...
TYM 4820 Power
Engine (gross)48 hp
35.8 kW
PTO (claimed)38.4 hp
28.6 kW
Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post folding ROPS. Cab available with air-conditioning.
Photos

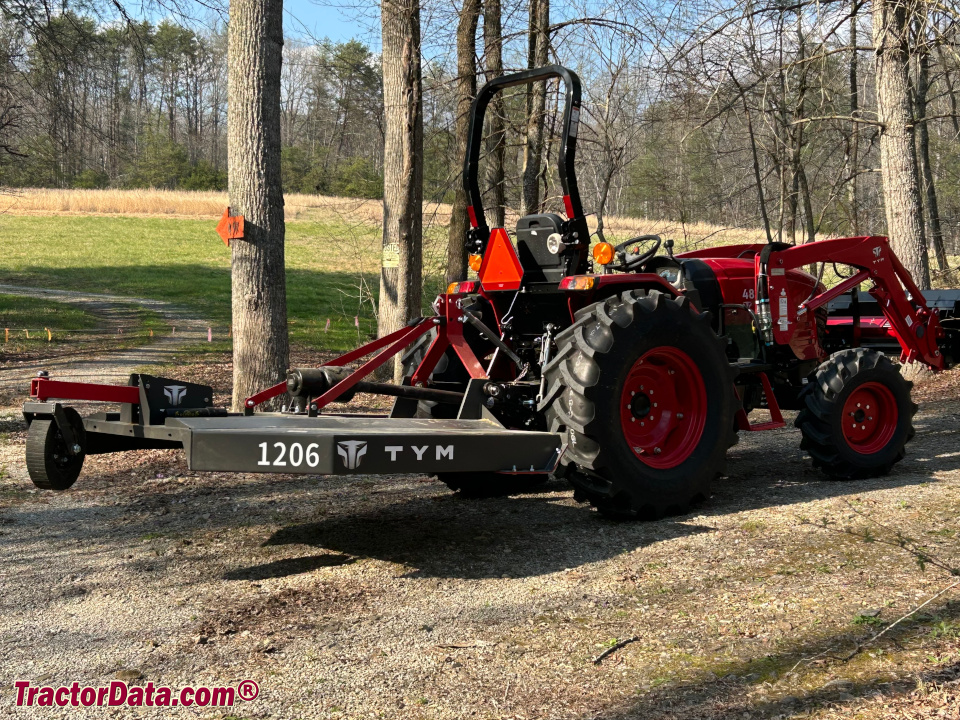

TYM 4820 compact utility tractor with ROPS and front-end loader.
TYM 4820 photos...
Capacity
Fuel11.8 gal
44.7 L
Shuttle Hydraulic system10.3 gal
39.0 L
Hydro Hydraulic system11.1 gal
42.0 L
Front axle6.8 qts
6.4 L
Hydraulics
Typeopen center
Shuttle Capacity10.3 gal
39.0 L
Hydro Capacity11.1 gal
42.0 L
Valves4 OptOptional
Pump flow11.4 gpm
43.1 lpm
Total flow16.5 gpm
62.5 lpm
Steering flow5.2 gpm
19.7 lpm
Tractor hitch
Rear TypeI
Controlposition control
Rear lift (at ends)3306 lbs
1499 kg
Rear lift (at 24"/610mm)2425 lbs
1099 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchwet disc
Rear PTO Type540 (1.375)
Dimensions & Tires
Wheelbase71.1 inches
180 cm
Weight3831 to 4349 pounds
Front tire9.5-16
Rear tire13.6-26
Full dimensions and tires ...
TYM 4820 attachments
front-end loader
backhoe
Attachment details ...
Electrical
Groundnegative
Charging systemalternator
ROPS Charging amps50
Cab Charging amps70
Battery volts12
References

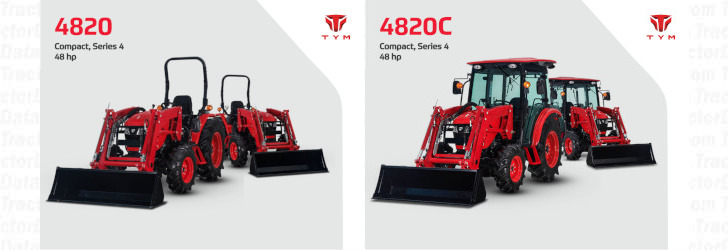

4820 references literature
4820 Compact, Series 4 published in 2025, by TYM
4820C Compact, Series 4 published in 2025, by TYM
