Fiat 470
|
|
| Production | |
| Manufacturer | Fiat |
| Orchard/Vineyard tractor | |
| Variants | |
| 470DT | 4WD |
| Fiat 470 Engine | |
| Fiat 2.3L 3-cyl diesel | |
 Engine details ... |
| Fiat 470 Transmissions | |
| 6-speed | |
| 9-speed creeper | |
 Transmission details ... |
| Fiat 470 Power |
| Mechanical | |
| Four-wheel drive | |
| Open operator station. |
| Photos | |
| No photos of the Fiat 470 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Dimensions & Tires | |
| 2WD Wheelbase | 73.4 inches 186 cm |
| 4WD Wheelbase | 70.2 inches 178 cm |
| Weight | 3120 to 3373 pounds |
| Front tire | 7.5-16 |
| Rear tire | 11.2-24 |
 Full dimensions and tires ... | |

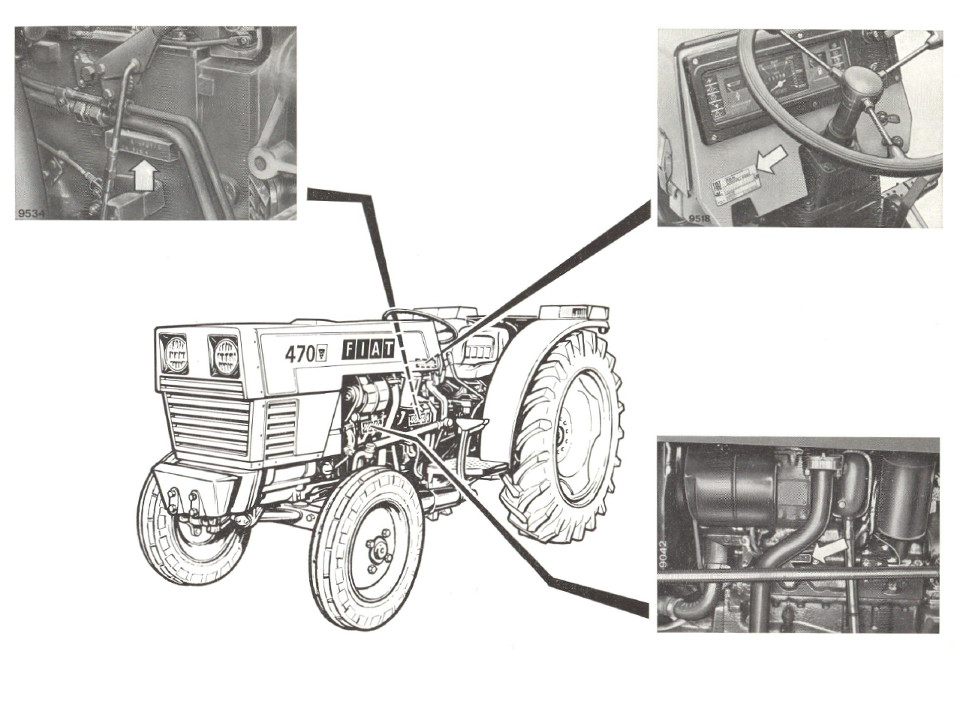

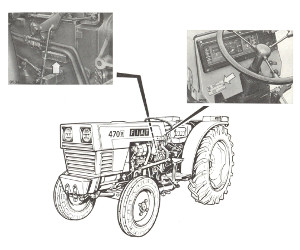

| 470 Serial Number Location | |
 | |
| Serial number on the left side of the tractor chassis. |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| Battery AH | 92 |
| References | |
 | |
| Operator's Manual 470 Vigneron (603.04.756) published in 1978 |
