Ferguson Pony
|
|
Note: the Ferguson model Pony is the same as the Massey-Harris Pony 11. The following data is from the Pony 11 listing. |
| Production | |
| Manufacturer | Ferguson |
| Utility tractor | |
| Built in Woodstock, Ontario, Canada | |
| After Massey-Harris and Ferguson merged, several models were sold under the brand of the other manufacturer. | |
| Ferguson Pony Engine | |
| Continental 1.0L 4-cyl gasoline | |
 Engine details ... |
| Ferguson Pony Transmission | |
| 3-speed unsynchronized gear | |
 Transmission details ... |
| Ferguson Pony Power | |
| Plows | 1 |
| Drawbar (tested) | 10.43 hp 7.8 kW |
| Belt (tested) | 11.62 hp 8.7 kW |
 Performance test details ... | |
| Mechanical | |
| Two-wheel drive | |
| Final drives | bull gear |
| Manual steering | |
| Differential mechanical contracting band brakes | |
| Open operator station. | |
| Photos | |
 | |
 Ferguson Pony photos... | |
| Capacity | |
| Fuel | 7 gal 26.5 L |
| Hydraulic system | 0.4 gal 1.5 L |
| Hydraulics | |
| Type | optional |
| Capacity | 0.4 gal 1.5 L |
| Pump flow | 2.5 gpm 9.5 lpm |
| Power Take-off (PTO) | |
| Rear PTO | optional |
| Rear PTO Type | 540 |
| Dimensions & Tires | |
| Wheelbase | 66 inches 167 cm |
| Weight | 1450 to 1890 pounds |
| Front tire | 4.00x-15 |
| Rear tire | 8-24 |
 Full dimensions and tires ... | |

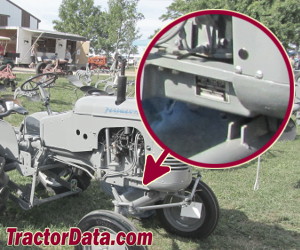

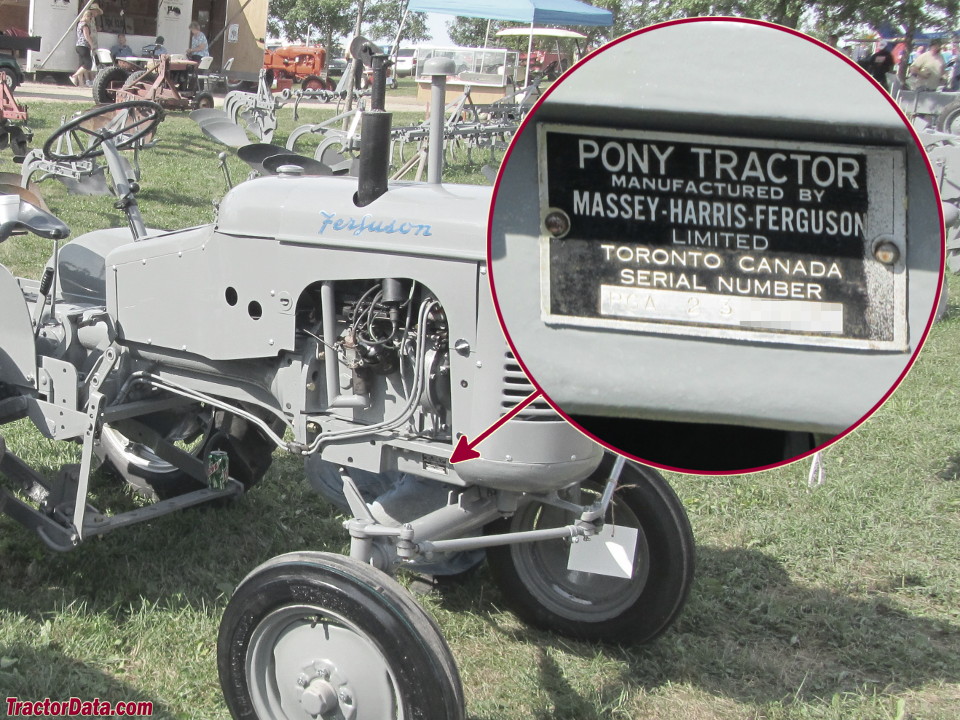

| Pony Serial Number Location | |
 | |
| Serial number on the right-front side of the tractor frame. |
| Pony Serial Numbers | |
| 1947 | PGS1001 |
| 1948 | PGS1321 |
| 1949 | PGS1571 |
| 1947 | PGA1001 |
| 1948 | PGA1001A |
| 1949 | PGA1571A |
| 1950 | PGA10817A |
| 1951 | PGA13726 |
| 1952 | PGA18225 |
| 1953 | PGA22007 |
| 1954 | PGA22669 |
FAQ: How to read a serial number table. | |
| Belt Pulley | |
| Diameter | 6 inches 15 cm |
| Width | 5.5 inches 13 cm |
| RPM | 1990 |
| Speed | 3300 ft/min 1005.84 meters/min |
| Electrical | |
| Charging system | generator |
