Massey-Harris Pony 11


Massey-Harris Pony 11 tractor photo
1947 - 1954
Utility tractor
Production
Manufacturer:Massey-Harris
Type:Utility tractor
Factory:Woodstock, Ontario, Canada
Variants
Pony 14:industrial tractor
Massey-Harris Pony 11 Power
Plows:1
Drawbar (tested):10.43 hp
7.8 kW
Belt (tested):11.62 hp
8.7 kW
power test details ...
Massey-Harris Pony 11 Engine
Continental 1.0L 4-cyl gasoline
Engine details ...
Mechanical
Chassis:4x2 2WD
Final drives:bull gear
Steering:manual
Brakes:differential mechanical contracting band
Cab:Open operator station.
Transmission:3-speed unsynchronized gear
Transmission details ...
Capacity
Fuel:7 gal
26.5 L
Hydraulic system:0.4 gal
1.5 L
Hydraulics
Type:optional
Capacity:0.4 gal
1.5 L
Pump flow:2.5 gpm
9.5 lpm
Power Take-off (PTO)
Rear PTO:optional
Rear RPM:540
Dimensions & Tires
Wheelbase:66 inches
167 cm
Weight:1450 to 1890 pounds
Front tire:4.00x-15
Rear tire:8-24
Full dimensions and tires ...
Pony 11 Serial Numbers

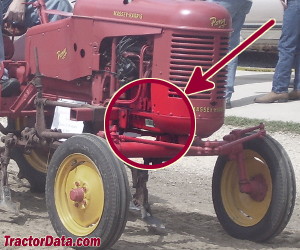

Location:Serial number on the right-front side of the tractor frame.
photo of Pony 11 serial number

1947:PGS1001
1948:PGS1321
1949:PGS1571
1947:PGA1001
1948:PGA1001A
1949:PGA1571A
1950:PGA10817A
1951:PGA13726
1952:PGA18225
1953:PGA22007
1954:PGA22669

how to read serial numbers...

Belt Pulley
Diameter:6 inches
15 cm
Width:5.5 inches
13 cm
RPM:1990
Speed:3300 ft/min
1005.84 meters/min
Electrical
Charging system:generator
