Tractors > John Deere > 2720

John Deere 2720 Engine



John Deere 2720 tractor photo
2008 - 2012
2000 Twenty Series
Compact Utility tractor
Series map:
2520
2720
26.4hp
31.4hp
Engine Detail
Yanmar 3TNV88
diesel
3-cylinder
liquid-cooled
Displacement100.2 ci
1.6 L
Bore/Stroke3.46x3.54 inches
88 x 90 mm
Rated Power (gross)31.4 hp
23.4 kW
Air cleanerdry dual element
Compression19.1:1
Rated RPM2500
Operating RPM1200-2650
Starter volts12
Starter power1.4 hp
1.0 kW
Coolant capacity4.2 qts
4.0 L
Engine Oil

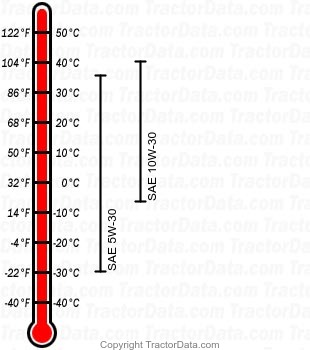

2720 diesel engine oil chart
Oil capacity3.6 qts
3.4 L
