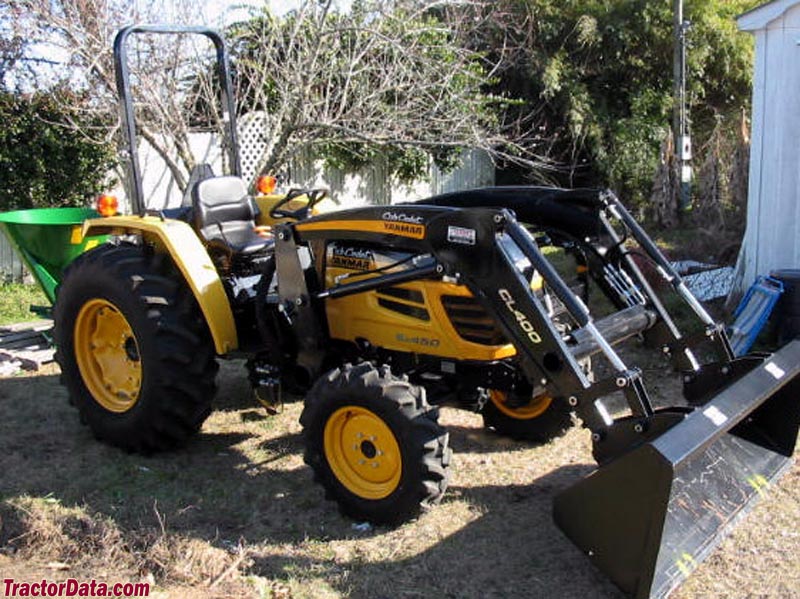

Yanmar Ex450
| 2012 - |
Ex Series | Compact Utility tractor |
|
Production |
Manufacturer: | Yanmar
|
Type: | Compact Utility tractor
|
Original price: | $21,299 (2009)
|
Yanmar Ex450 Power |
Engine (gross): | 45 hp 33.6 kW
|
PTO (claimed): | 37.5 hp 28.0 kW
|
Mechanical |
Chassis: | 4x4 MFWD 4WD
|
Steering: | hydraulic power
|
Brakes: | wet disc
|
Cab: | Two-post ROPS.
|
Transmission: | 9-speed synchronized shuttle
|
Transmission details ... |
Capacity |
Fuel: | 11.3 gal 42.8 L
|
Front axle: | 8 qts 7.6 L
|
Hydraulics |
Type: | open center
|
Valves: | 2 or 3
|
Pump flow: | 8.2 gpm 31.0 lpm
|
Total flow: | 12.7 gpm 48.1 lpm
|
Steering flow: | 4.5 gpm 17.0 lpm
|
Tractor hitch |
Rear Type: | 1
|
Control: | position control
|
Rear lift (at 24"/610mm): | 2,464 lbs 1117 kg
|
Power Take-off (PTO) |
Rear PTO: | live
|
Clutch: | dry dual stage
|
Rear RPM: | 540
|
Electrical |
Ground: | negative
|
Battery volts: | 12
|
