CaseIH Farmall 110A

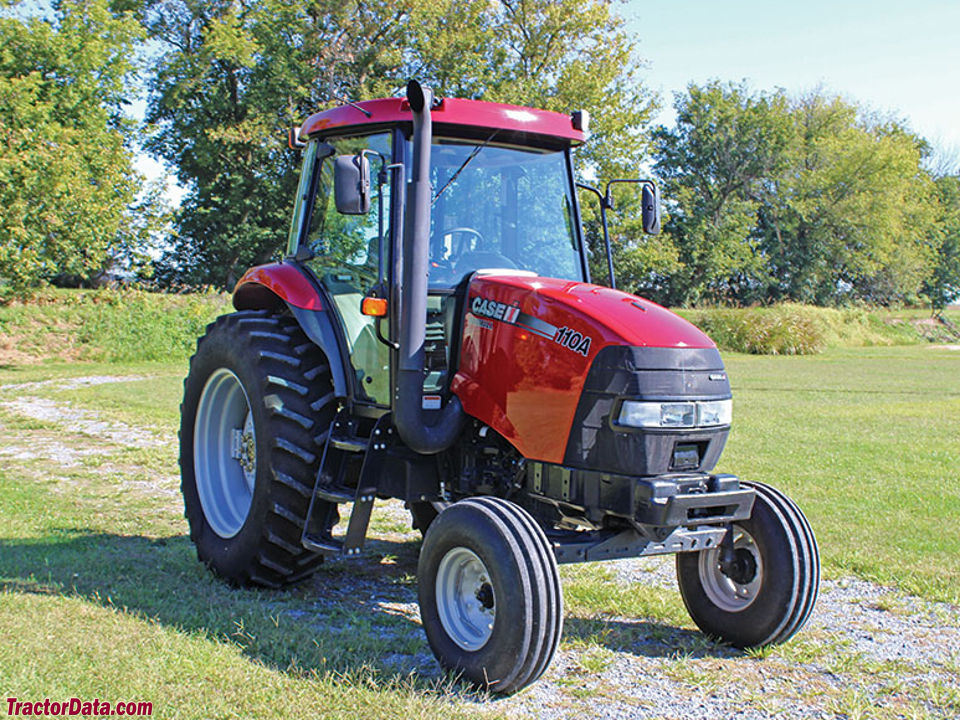

CaseIH Farmall 110A tractor photo
2012 - 2023
Model year
Farmall 100A Series
Utility tractor
Series:Farmall 110AFarmall 120A
Production
Manufacturer:CaseIH
Type:Utility tractor
CaseIH Farmall 110A Power
Engine (gross):110 hp
82.0 kW
PTO (claimed):90 hp
67.1 kW
Drawbar (tested):81.30 hp
60.6 kW
PTO (tested):94.17 hp
70.2 kW
power test details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Two-post foldable ROPS. Cab optional with air-conditioning.
Transmissions:8-speed power shuttle
 8-speed synchronized shuttle
 16-speed power shuttle
Transmission details ...
Capacity
Fuel:40 gal
151.4 L
Hydraulic system:16.4 gal
62.1 L
Hydraulics
Type:open center
Capacity:16.4 gal
62.1 L
Valves:2 to 4
Pump flow:22 gpm
83.3 lpm
Total flow:31 gpm
117.3 lpm
Steering flow:9 gpm
34.1 lpm
Tractor hitch
Rear Type:II
Rear lift (at 24"/610mm):7200 lbs
3265 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000
Dimensions & Tires
2WD Wheelbase:101 inches
256 cm
4WD Wheelbase:99 inches
251 cm
Weight:8003 to 9348 pounds
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:120
Battery CCA:950
Battery volts:12
