John Deere 7505 Transmission


John Deere 7505 tractor photo
1998 - 2005
Utility tractor
Series map:
6605
7505
90.2kw
104.4kw
Transmission
TransmissionJohn Deere PowrQuad
Typepartial power shift
Gears16 forward and reverse
Clutchhydraulic wet disc PermaClutch II
Oil capacity67.6 qts
64.0 L
Oil type
JD Hy-Gard
Four power shift gears (1-4) in four synchronized ranges (A-D).
Speeds
With 18.4-38 R1 rear tires. Reverse speeds are 15% faster than forward speeds.

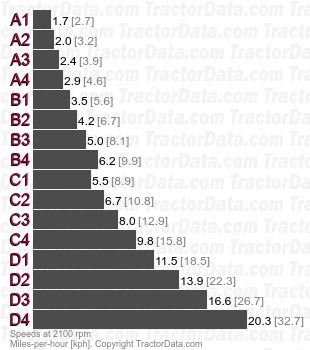

7505 PowrQuad partial power shift speeds
