Tractors > John Deere > 7505

John Deere 7505 Engine



John Deere 7505 tractor photo
1998 - 2005
Utility tractor
Series map:
6605
7505
90.2kw
104.4kw
Engine Detail
John Deere 6068T Series 350
turbocharged diesel
6-cylinder
liquid-cooled
Displacement414.4 ci
6.8 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
Power140 hp
104.4 kW
Compression17.8:1
Rated RPM2100
Torque446.2 lb-ft
605.0 Nm
Torque RPM1400
Starter volts12
Coolant capacity20.1 qts
19.0 L
Engine Oil

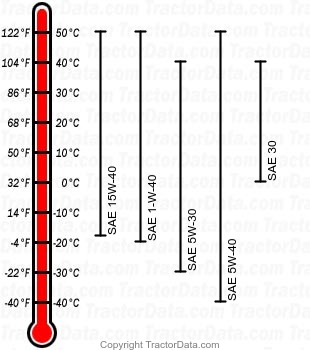

7505 diesel engine oil chart
Oil capacity20.1 qts
19.0 L
