J.I. Case 25-45
| | 1924 - 1927 |
| Crossmotor Series | | Standard-tread tractor |
|
| Production |
| Manufacturer: | J.I. Case
|
| Type: | Standard-tread tractor
|
| Factory: | Racine, Wisconsin, USA
|
| J.I. Case 25-45 Power |
| Drawbar (claimed): | 25 hp
18.6 kW
|
| Belt (claimed): | 45 hp
33.6 kW
|
| Plows: | 4-5 (14 inch)
|
| Drawbar (tested): | 34.65 hp
25.8 kW
|
| Belt (tested): | 52.59 hp
39.2 kW
|
| power test details ... |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | manual
|
| Cab: | Open operator station.
|
| Transmission: | 2-speed gear
|
 Transmission details ... |
| Power Take-off (PTO) |
| Rear RPM: | 540
|
| Belt Pulley |
| Diameter: | 16.5 inches
41 cm
|
| Width: | 8.5 inches
21 cm
|
| RPM: | 850
|
| Speed: | 3,669 ft/min
1118.31 meters/min
|
| Page information |
| Last update: | May 16, 2021
|
| Copyright: | Copyright 2021 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2021 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...

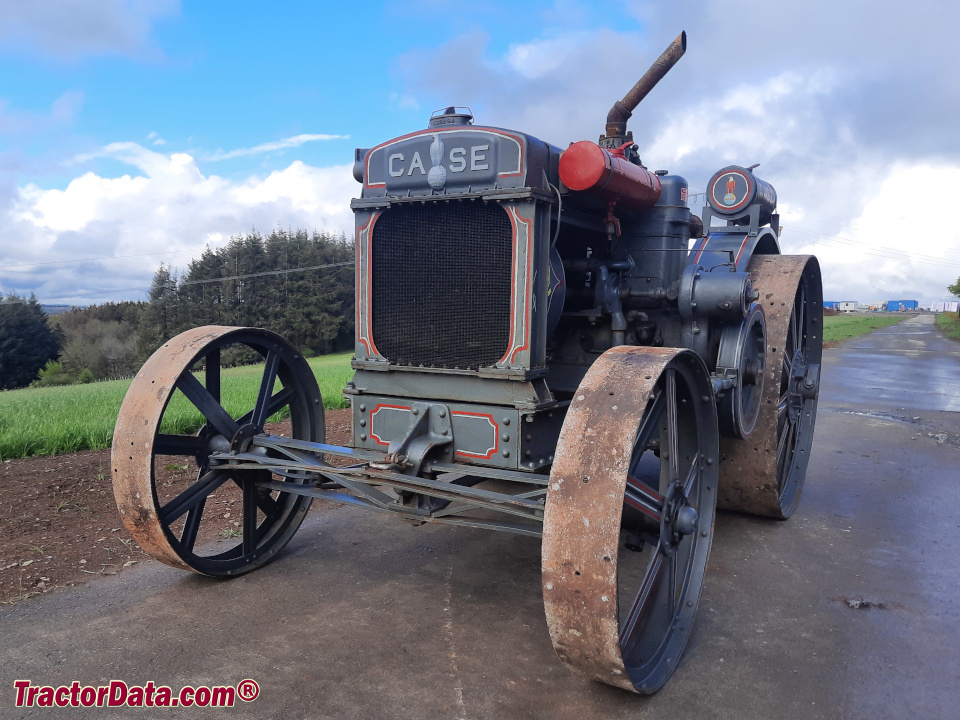

J.I. Case 25-45 photos...
Full dimensions and tires ...
