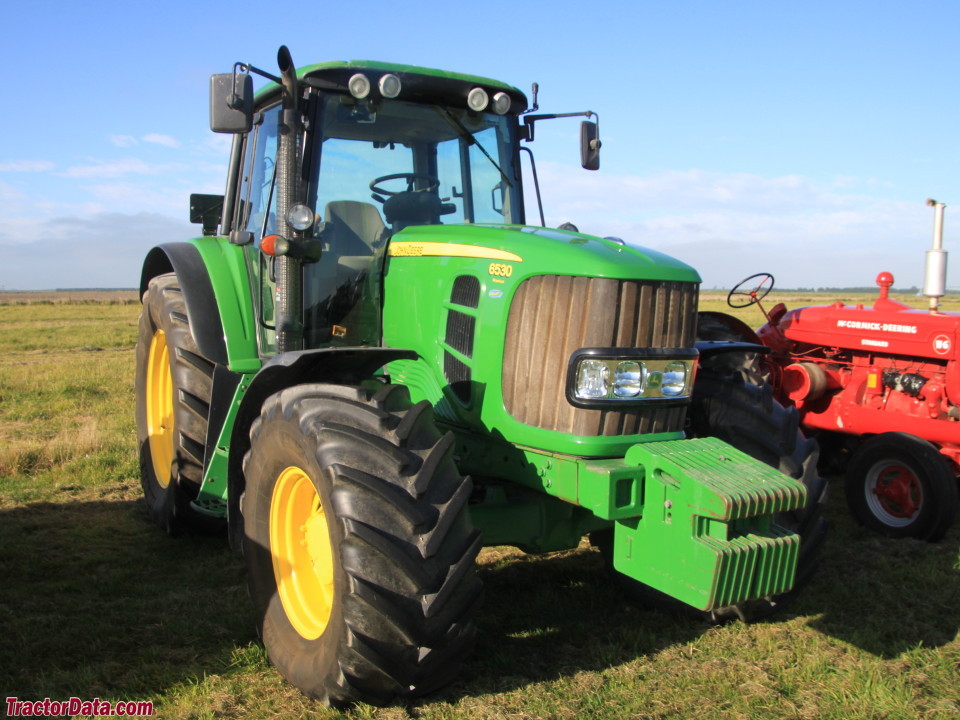

John Deere 6530 Premium
|
|
| Production | |
| Manufacturer | John Deere |
| John Deere 6530 Premium Engine | |
| John Deere 6.8L 6-cyl diesel | |
 Engine details ... |
| John Deere 6530 Premium Transmissions | |
| 24-speed partial power shift | |
| 36-speed partial power shift | |
| infinitely variable transmission (IVT) | |
 Transmission details ... |
| John Deere 6530 Premium Power | |
| Engine (gross) | 120 hp 89.5 kW |
| Engine (net) | 115 hp 85.8 kW |
| Engine (max) | 128 hp 95.4 kW |
| PTO (claimed) | 102 hp 76.1 kW |
| Boost PTO (claimed) | 120 hp 89.5 kW |
| Mechanical | |
| Four-wheel drive | |
| Hydraulic wet disc brakes | |
| Cab standard with air-conditioning. |
| Capacity | |
| Fuel | 54.7 gal 207.0 L |
| Optional Fuel | 66 gal 249.8 L |
| Hydraulic system | 14 gal 53.0 L |
| IVT Hydraulic system | 16.4 gal 62.1 L |
| Hydraulics | |
| Type | load-sensing pressure-flow compensating (PFC) |
| Capacity | 14 gal 53.0 L |
| IVT Capacity | 16.4 gal 62.1 L |
| Pressure | 2,901 psi 200.0 bar |
| Valves | 4 (Max) |
| Pump flow | 15.9 gpm 60.2 lpm |
| Optional Pump flow | 29.1 gpm 110.1 lpm |
| Tractor hitch | |
| Rear Type | IIIN |
| Control | 15.9 |
| Optional Control | 29.1 |
| Rear lift (at ends) | 14,880 lbs 6749 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | electro-hydraulic wet disc |
| Rear PTO Type | 540/540E/1000 |
| Engine RPM | 540@2143 |
| 540E@1684 | |
| 1000@2208 | |
| Front PTO Type | 1000 |
| Engine RPM | 1000@2185 |
| Dimensions & Tires | |
| Wheelbase | 104.3 inches 264 cm |
| Weight | 11,200 lbs 5080 kg |
| Front tire | 420/70R28 |
| Rear tire | 18.4R38 |
 Full dimensions and tires ... | |
| 6530 Premium Serial Numbers | |
| Location: | Front-right side of main tractor frame, above front axle. |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Battery volts | 12 |
