John Deere 6530 Premium Transmission
|
|
| Transmission options | |
| 24-speed partial power shift | |
| 36-speed partial power shift | |
| infinitely variable transmission (IVT) |
| Transmission | |

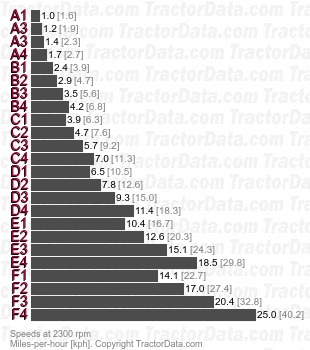

| Transmission | John Deere PowrQuad Plus |
| Type | partial power shift |
| Gears | 24 forward and reverse |
| Clutch | PermaClutch II wet disc |
| Oil capacity | 56 qts 53.0 L |
| Four power shift gears (1-4) in six synchronized ranges (A-F) with left-hand power shuttle. Optional de-clutch button allows range shifting without using the foot clutch. | |
| Speeds | |
|
| Transmission | |

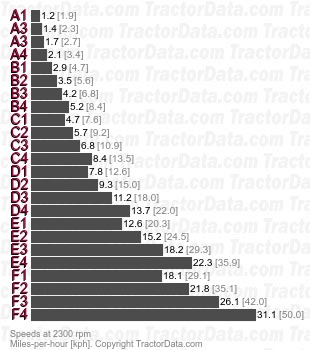

| Transmission | John Deere AutoQuad Plus |
| Type | partial power shift |
| Gears | 24 forward and reverse |
| Clutch | PermaClutch II wet disc |
| Oil capacity | 56 qts 53.0 L |
| AutoQuad Plus adds automatic load-matched gear shifting to the PowrQuad transmission. Available in 40kph or 50kph speeds. | |
| Speeds | |
|
| Transmission | |

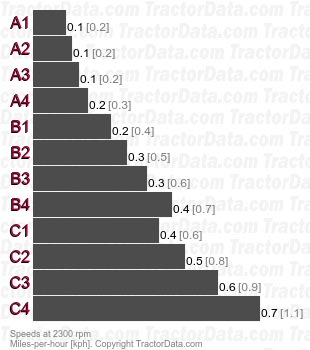

| Transmission | John Deere Creeper |
| Type | partial power shift |
| Gears | 36 forward and reverse |
| Clutch | PermaClutch II wet disc |
| Oil capacity | 56 qts 53.0 L |
| The optional creeper adds an additional twelve speeds to the PowrQuad or AutoQuad transmission. | |
| Speeds | |
|
| Transmission | |

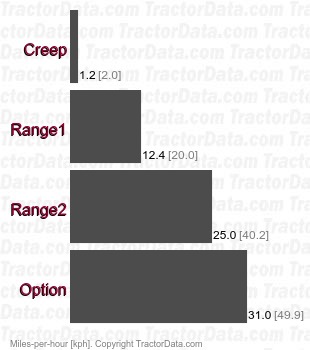

| Transmission | John Deere AutoPowr |
| Type | infinitely variable transmission (IVT) |
| Gears | infinite forward and reverse |
| Oil capacity | 65.5 qts 62.0 L |
| The AutoPowr IVT is controlled by left-hand shuttle and a right-hand speed lever with speed wheel. The speed wheel sets the maximum speed. When set below 2kph, the transmission is automatically in creeper mode. AutoPowr available with 40kph and 50kph maximum speeds. | |
| Speeds | |
|
