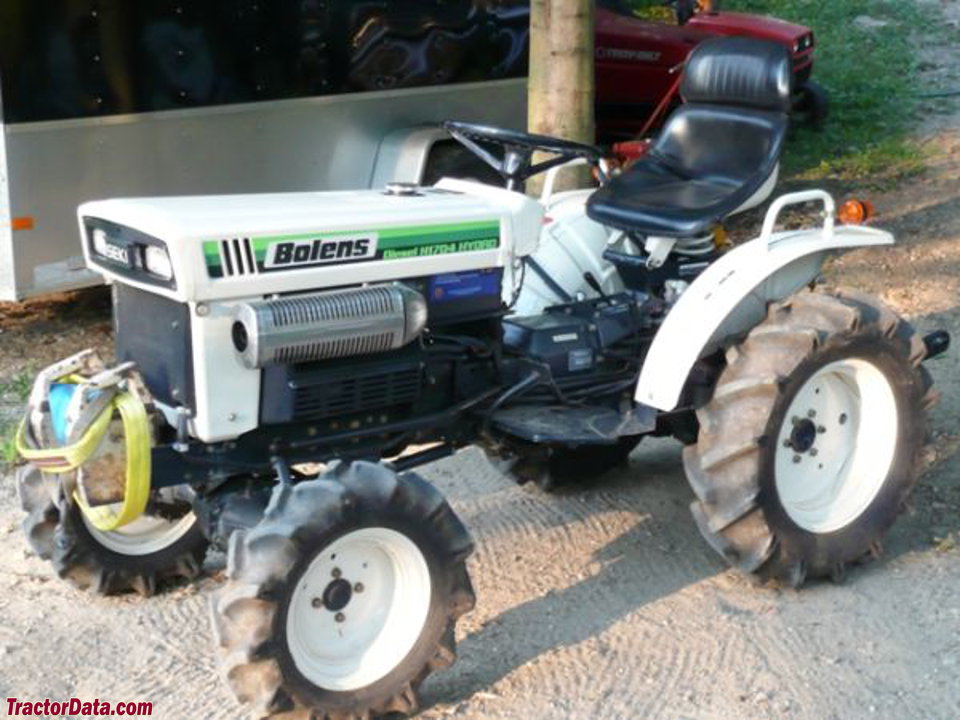

Bolens H1704
|
|
| Production | |
| Distributor | Bolens |
| Manufacturer | Iseki |
| Sub-Compact Utility tractor | |
| Built in Japan | |
| Bolens H1704 Engine | |
| Mitsubishi 0.8L 3-cyl diesel | |
| Fuel tank | 3.17 gal 12.0 L |
 Engine details ... | |
| Bolens H1704 Transmission | |
| hydrostatic | |
 Transmission details ... |
| Bolens H1704 Power | |
| Engine | 17 hp 12.7 kW |
| Mechanical | |
| Four-wheel drive | |
| Differential lock | mechanical rear |
| Manual steering | |
| Mechanical drum brakes | |
| Open operator station. | |
| Photos | |
 | |
 Bolens H1704 photos... | |
| Hydraulics | |
| Type | open center |
| Pressure | 1850 psi 127.6 bar |
| Pump flow | 3 gpm 11.4 lpm |
| Tractor hitch | |
| Rear Type | I/0 |
| Control | position control |
| Rear lift | 830 lbs 376 kg |
| Power Take-off (PTO) | |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 454@2700 |
| 724@2700 | |
| 1185@2700 | |
| Front PTO | independent OptOptional |
| Clutch | manual idler pulley |
| Front PTO Type | 2000 |
| Engine RPM | 2000@2700 |
| Dimensions & Tires | |
| Wheelbase | 50.4 inches 128 cm |
| Weight | 1268 lbs 575 kg |
| Front tire | 5.00-12 |
| Rear tire | 8-16 |
 Full dimensions and tires ... | |
| Bolens H1704 attachments | |
| 48" mid-mount mower deck | |
| snowblower | |
| blade | |
| front-end loader | |
| backhoe | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 35 |
| Battery CCA | 305 |
| Battery volts | 12 |
| References | |
 | |
| Operation Instructions Front PTO Attachment Model 1308 (553245) published in 1978 | |
| High Performance published in 1987, by Bolens | |
| Lawn & Garden published in 1988, by Bolens* | |
| Lawn and Garden Power Products published in 1989, by Bolens | |
| *Publication contains known errors. |
