Tractors > Bolens > H1704

Bolens H1704 Engine



Bolens H1704 tractor photo
1985 - 1991
Sub-Compact Utility tractor
Iseki built
Engine Detail
Mitsubishi K3B
diesel
3-cylinder
liquid-cooled
Displacement51.7 ci
0.8 L
Bore/Stroke2.67x3.07 inches
68 x 78 mm
Power17 hp
12.7 kW
Air cleanerdry element
Pre-heatingglow plugs
Compression22:1
Rated RPM2600
Torque34.7 lb-ft
47.1 Nm
Torque RPM1800
Starterelectric
Starter volts12
Coolant capacity4.4 qts
4.2 L
Engine Oil

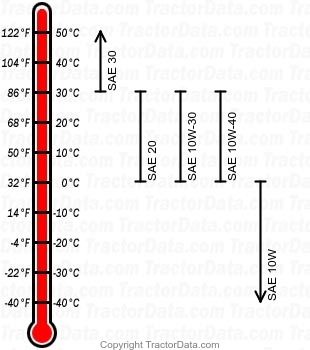

H1704 diesel engine oil chart
Oil capacity2.7 qts
2.6 L
Oil change100 h
