Tractors > John Deere > 4250 Hi-Crop

John Deere 4250 Hi-Crop



John Deere 4250 Hi-Crop tractor photo
1983 - 1988
50 Series
High-Clearance tractor
Series map:
4050 Hi-Crop
4250 Hi-Crop
130.0hp
133.3hp*
*Estimated engine power for comparison only.
Production
ManufacturerJohn Deere
High-Clearance tractor
Built in Waterloo, Iowa, USA
Variants
4250row-crop chassis
John Deere 4250 Hi-Crop Engine
John Deere 7.6L 6-cyl diesel
Engine details ...
John Deere 4250 Hi-Crop Transmissions
16-speed partial power shift
15-speed full power shift
Transmission details ...
John Deere 4250 Hi-Crop Power
Drawbar (claimed)101 hp
75.3 kW
PTO (claimed)120 hp
89.5 kW
Mechanical
Two-wheel drive
Power steering
Differential hydraulic wet disc brakes
Sound-Gard cab standard. Optional four-post Roll-Gard ROPS.

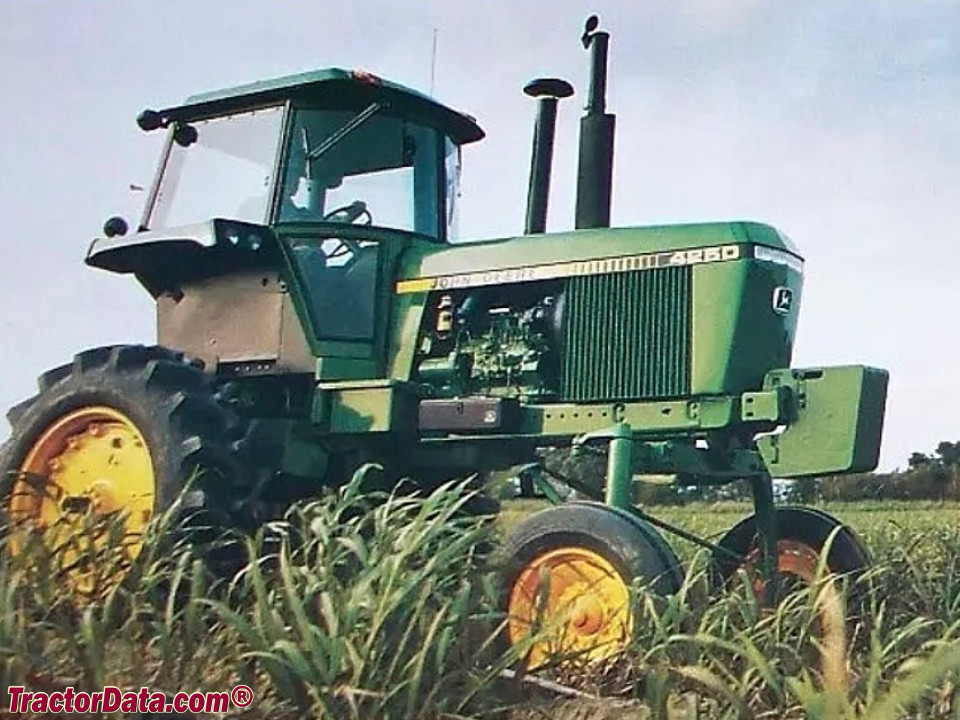

Photos
John Deere 4250 Hi-Crop
John Deere 4250 Hi-Crop photos...
Capacity
Fuel65 gal
246.0 L
Hydraulic system10.5 gal (2WD Power Shift)
39.7 L
 13.5 gal (4WD Power Shift)
51.1 L
 16.0 gal (Quad-Range)
60.6 L
Hydraulics
Typeclosed
Capacity10.5 gal (2WD Power Shift)
39.7 L
 13.5 gal (4WD Power Shift)
51.1 L
 16.0 gal (Quad-Range)
60.6 L
Pressure2277 psi
157.0 bar
Valves2 or 3
Pump flow26.5 gpm
100.3 lpm
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000
Engine RPM540@2200
 1000@2200
Dimensions & Tires
Wheelbase107 inches
271 cm
Weight13369 lbs
6064 kg
Front tire7.50-20
Rear tire18.4-38
Full dimensions and tires ...
4250 Hi-Crop Serial Numbers
Location:Serial number plate on the rear of the tractor.
19831000
19846001
19859001
198611001
198712501
198813501
198920001

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps72
 90 (with Sound-Gard cab)
Batteries2
Battery volts6
 12 (optional)
References
4250 Hi-Crop references literature
Tractors 105 to 190 HP published in 1984, by John Deere
Agricultural Price List published in 1983, by John Deere
Tractors Hi-Crop, Low-Profile, Narrow- and Wide-Tread published in 1985, by John Deere
