Farmall MDV
|
|
| Production | |
| Manufacturer | Farmall (a part of International Harvester) |
| High-Clearance tractor | |
| Built in Rock Island, Illinois, USA | |
| The MDV was the "vegetable", or high-clearance version of the Farmall MD. | |
| Farmall MDV Engine | |
| International Harvester 4.1L 4-cyl diesel | |
 Engine details ... |
| Farmall MDV Power | |
| PTO (claimed) | 33 hp 24.6 kW |
| Plows | 3 (14-inch) |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Mechanical contracting band brakes | |
| Open operator station. |
| Photos | |
 | |
 Farmall MDV photos... | |
| Power Take-off (PTO) | |
| Rear PTO Type | 540 |
| Dimensions & Tires | |
| Wheelbase | 93.50 inches 237 cm |
| Front tire | 6.00-20 |
| Rear tire | 10.00-36 |
 Full dimensions and tires ... | |

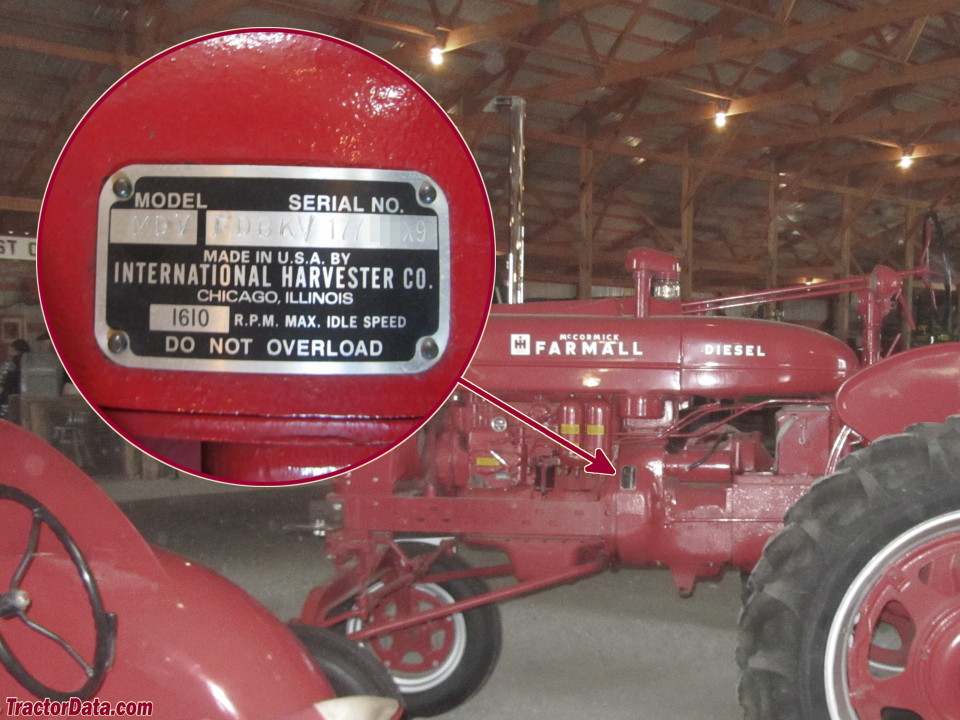

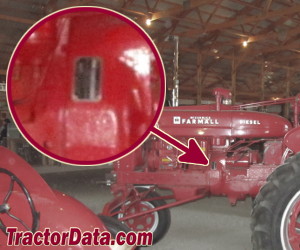

| MDV Serial Number Location | |
 | |
| Data plate on the left side of clutch housing |
| MDV Serial Numbers | |
| 1941 | 25371 |
| 1942 | 50988 |
| 1943 | 60011 |
| 1944 | 67424 |
| 1945 | 88085 |
| 1946 | 105564 |
| 1947 | 122823 |
| 1948 | 151708 |
| 1949 | 180514 |
| 1950 | 213579 |
| 1951 | 247518 |
| 1952 | 290923 |
FAQ: How to read a serial number table. | |
| References | |
 | |
| General Line Catalog published in 1949, by International Harvester |
