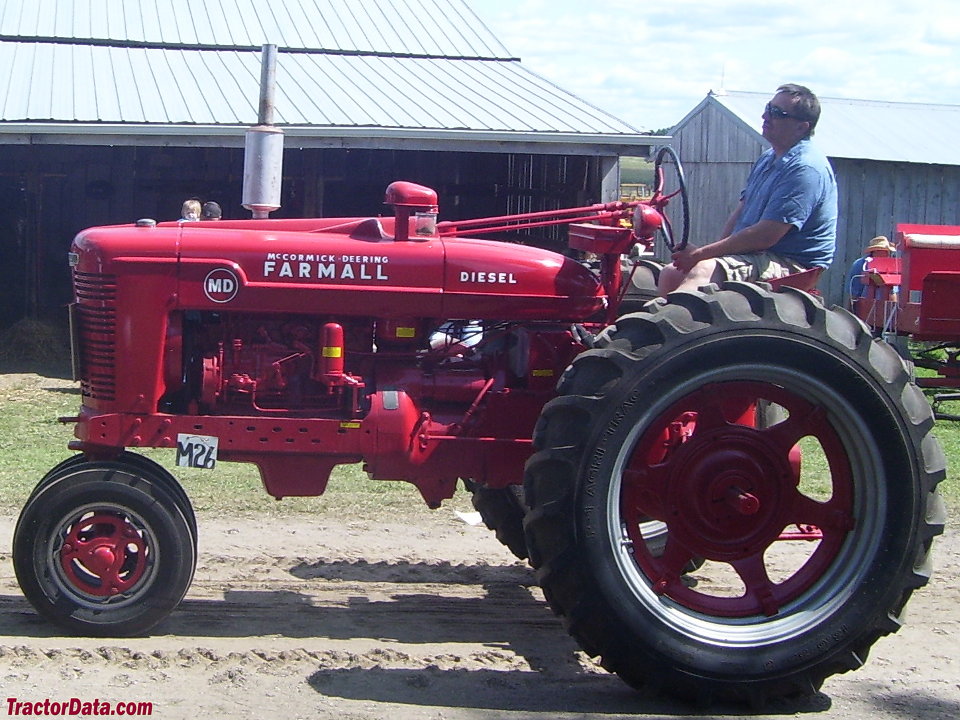

Farmall MD
| | 1941 - 1952 |
| Row-Crop tractor |
|
| Production |
| Manufacturer: | Farmall (a part of International Harvester)
|
| Type: | Row-Crop tractor
|
| Total built: | 18,253
|
| Original price: | $2,400 (1952)
|
| The Farmall MD was the diesel version of the M. The MD was started on gasoline, by pulling a lever which enlarged the combustion chamber (to lower the compression) and closed the circuit for the spark plugs. After the engine was warm, it was switched over to diesel. |
| Variants |
| WD-6: | standard-front
|
| ID-6: | industrial
|
| M: | gasoline engine
|
| Farmall MD Power |
| PTO (claimed): | 35 hp
26.1 kW
|
| Plows: | 3 (14-inch)
|
| Drawbar (tested): | 33.58 hp
25.0 kW
|
| Belt (tested): | 38.21 hp
28.5 kW
|
| power test details ... |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | manual
|
| Brakes: | differential mechanical contracting band
|
| Cab: | Open operator station.
|
| Transmission: | 5-speed sliding gear
|
 Transmission details ... |
| Hydraulics |
| Type: | Lift-All, transmission-driven
|
| Pressure: | 500 psi
34.5 bar (early)
|
| | 800 psi
55.2 bar (late)
|
| Power Take-off (PTO) |
| Rear RPM: | 540
|
| Electrical |
| Ground: | positive
|
| Batteries: | 2
|
| Battery volts: | 6
|
