International Harvester 500 Transmission



International Harvester 500 tractor photo
1965 - 1969
Agricultural Crawler tractor
Series map:
500
43.5hp
Transmission options
8-speed partial power shift
5-speed unsynchronized gear
Transmission
TransmissionInternational Harvester Torque Amplifier
Typepartial power shift
Gears8 forward and 2 reverse
Clutch10-inch dry disc
Oil capacity13.2 qts
12.5 L
The IH Torque Amplifier adds a shift-on-the-move underdrive to the basic gear transmission.
Speeds

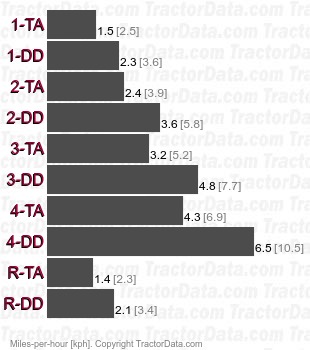

500 Torque Amplifier partial power shift speeds
Transmission
TransmissionInternational Harvester
Typeunsynchronized gear
Gears5 forward and 1 reverse
Clutch10-inch dry disc
Oil capacity13.2 qts
12.5 L
Speeds

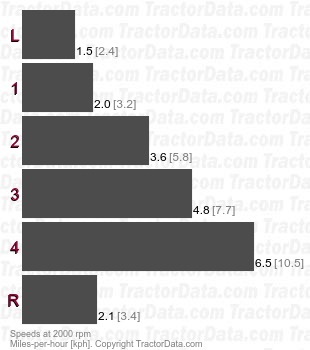

500 unsynchronized gear speeds

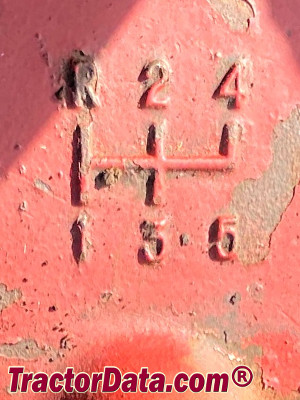

Shift Pattern
International Harvester 500 transmission controls
