International Harvester 500 Engine

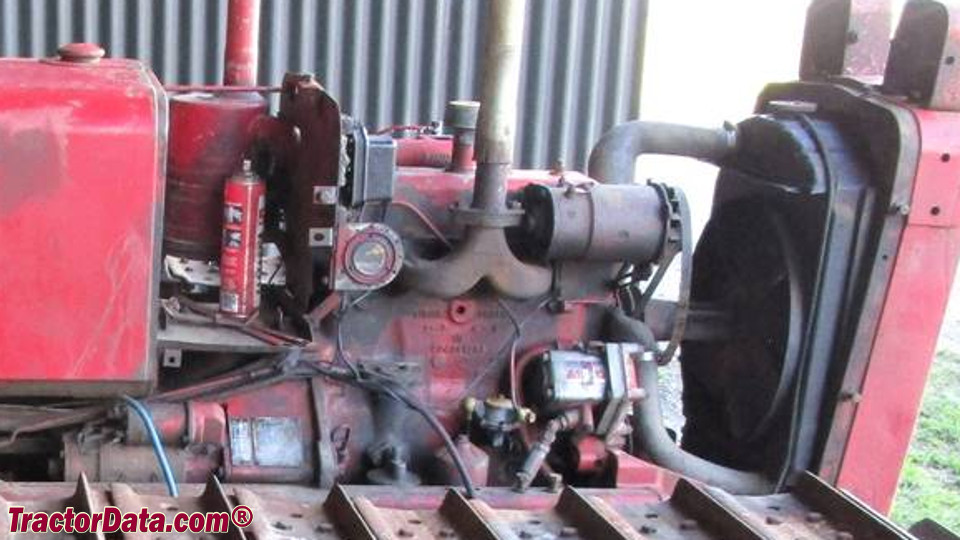

International Harvester 500 tractor photo
1965 - 1969
Agricultural Crawler tractor
Series:500
500C
Engines overview
International Harvester 2.5L 4-cyl diesel
International Harvester 2.4L 4-cyl gasoline
Engine Detail
International Harvester BD-154
diesel
4-cylinder
liquid-cooled inline
Displacement:154 ci
2.5 L
Bore/Stroke:3.50x4.00 inches
89 x 102 mm
Power (gross):43.5 hp
32.4 kW
Air cleaner:dry element
Pre-heating:glow plugs
Compression:23:1
Rated RPM:2000
Starter:electric
Starter volts:12
Oil capacity:6.25 qts
5.9 L
Coolant capacity:12 qts
11.4 L
Engine Detail
International Harvester C-146
gasoline
4-cylinder
liquid-cooled
Displacement:145.3 ci
2.4 L
Bore/Stroke:3.375x4.06 inches
86 x 103 mm
Power (gross):47 hp
35.0 kW
Fuel system:1-inch carburetor
Air cleaner:dry element
Compression:7.6:1
Rated RPM:2000
Starter:electric
Starter volts:12
Oil capacity:5 qts
4.7 L
Coolant capacity:12 qts
11.4 L
