Tractors > International Harvester > 500

International Harvester 500 Tests



International Harvester 500 tractor photo
1965 - 1969
Agricultural Crawler tractor
Series:500
500C ↓
Nebraska Tractor Test 950

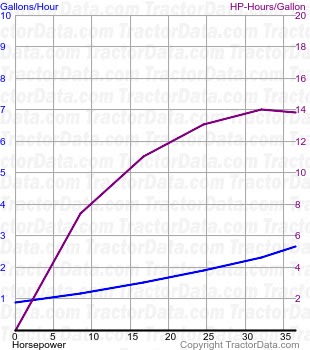

500 fuel use from test 950
Nebraska Tractor Test 950
Gasoline Torque Amplifier crawler
October 24 - November 2, 1966
Link: Nebraska Tractor Test 950 file
PTO performance
Power at rated engine speed:37.22 hp
27.8 kW
Fuel use:3.2 gal/hour
12.1 l/hour
Drawbar performance
Max power:31.24 hp
23.3 kW
Fuel use:3.2 gal/hour
12.1 l/hour
Gear 2-Direct used for power test.
Max pull:7,988 lbs
3623 kg
Gear 2-TA used for pull test.
Nebraska Tractor Test 951

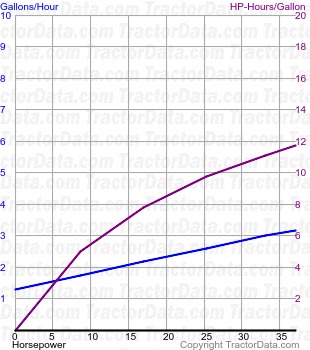

500 fuel use from test 951
Nebraska Tractor Test 951
Diesel Torque Amplifier crawler
October 24 - November 2, 1966
Link: Nebraska Tractor Test 951 file
PTO performance
Power at rated engine speed:36.65 hp
27.3 kW
Fuel use:2.6 gal/hour
9.8 l/hour
Drawbar performance
Max power:30.55 hp
22.8 kW
Fuel use:2.7 gal/hour
10.2 l/hour
Gear 2-Direct used for power test.
Max pull:7,957 lbs
3609 kg
Gear 2-TA used for pull test.
