John Deere 5420N Engine


John Deere 5420N tractor photo
2001 - 2004
Orchard/Vineyard tractor
Series map:
5320N
5420N
5520N
61.1hp*
72.2hp*
83.3hp*
*Estimated engine power for comparison only.
Engine Detail
John Deere 4045D
diesel
4-cylinder
liquid-cooled
Displacement278 ci
4.6 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
Compression17.6:1
Rated RPM2400
Idle RPM825-2625
Operating RPM1600-2400
Torque179.2 lb-ft
243.0 Nm
Torque RPM1400
Firing order1-3-4-2
Starterelectric
Starter volts12
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

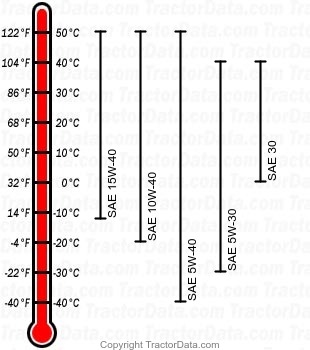

5420N diesel engine oil chart
Oil capacity9 qts
8.5 L
Oil change100 h
