| | 2001 - 2004 |
| Orchard/Vineyard tractor |
|
Series map:
5320N
5420N
5520N
61.1hp*
72.2hp*
83.3hp*
*Estimated engine power for comparison only.
| Transmission |
| Transmission | John Deere SyncReverser
|
| Type | partially synchronized
|
| Gears | 12 forward and reverse
|
| Oil capacity | 44 qts
41.6 L
|
| Four gears (1-4) in three ranges (A-C) with left-hand reverser lever. Directional changes (forward-reverse) and gear shifts (1-4) are synchronized and can be performed while moving by using the clutch. The tractor must be stopped, and clutch used, to shift ranges (A-C). |

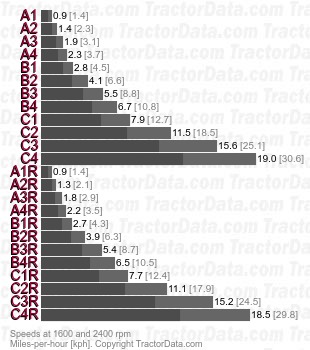

| Speeds |
| With 14.9-28 R1 rear tires. |
|
