Tractors > John Deere > 5320N

John Deere 5320N Engine



John Deere 5320N tractor photo
2001 - 2004
Orchard/Vineyard tractor
Series map:
5320N
5420N
61.1hp*
72.2hp*
*Estimated engine power for comparison only.
Engine Detail
John Deere 3029T
turbocharged diesel
3-cylinder
liquid-cooled
Displacement179 ci
2.9 L
Bore/Stroke4.19x4.33 inches
106 x 110 mm
Compression17.8:1
Rated RPM2400
Idle RPM825-2625
Operating RPM1600-2400
Torque144 lb-ft
195.3 Nm
Torque RPM1400
Firing order1-2-3
Starterelectric
Starter volts12
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

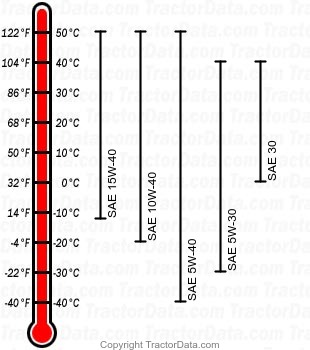

5320N diesel engine oil chart
Oil capacity9 qts
8.5 L
Oil change100 h
