John Deere 6330 Premium



John Deere 6330 Premium tractor photo
2007 - 2012
Model year
6030 Series
Series map:
6230 Premium
6330 Premium
6430 Premium
94.0hp
105.0hp
115.0hp
Production
ManufacturerJohn Deere
Built in Mannheim, Baden-Württemberg, Germany
Original price$76,601 (2010)
Variants
6330basic tractor
John Deere 6330 Premium Engine
John Deere 4.5L 4-cyl diesel
Engine details ...
John Deere 6330 Premium Transmissions
16-speed partial power shift
24-speed partial power shift
infinitely variable transmission
Transmission details ...
John Deere 6330 Premium Power
Engine (gross)105 hp
78.3 kW
PTO (claimed)85 hp (2-valve)
63.4 kW
 95 hp (4-valve)
70.8 kW
Drawbar (tested)79.9 hp
59.6 kW
PTO (tested)105.0 hp
78.3 kW
Performance test details ...
Mechanical
Drive4x2 2WD
 4x4 MFWD 4WD (optional)
Steeringhydrostatic power
Differential hydraulic wet disc brakes
ComfortGard Cab standard.
Photos
No photos of the John Deere 6330 Premium are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel48 gal
181.7 L
Hydraulic system13.2 gal
50.0 L
 15.9 gal (IVT)
60.2 L
Hydraulics
Typeclosed-center pressure and flow compensated (PFC)
Capacity13.2 gal
50.0 L
 15.9 gal (IVT)
60.2 L
Pressure2900 psi
200.0 bar
Rear valves2 to 4
Pump flow29 gpm
109.8 lpm
Tractor hitch
Rear TypeII
 IIIN/II (optional)
Rear lift (at 24"/610mm)5,060 lbs
2295 kg
 7,231 lbs (optional)
3279 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000
 540/540E/1000 (optional)
Front PTOoptional
Front PTO Type1000
Dimensions & Tires
Wheelbase94.5 inches
240 cm
Weight9491 to 10009 pounds
Front tire10.00-16
Rear tire16.9R30
Full dimensions and tires ...
John Deere 6330 Premium attachments
front-end loader
Attachment details ...
6330 Premium Serial Number Location
John Deere 6330 Premium serial number location
On the front-right of the main tractor frame, above the front axle.
Electrical
Groundnegative
Charging systemalternator
Charging amps115
Charging volts14
Battery volts12
References

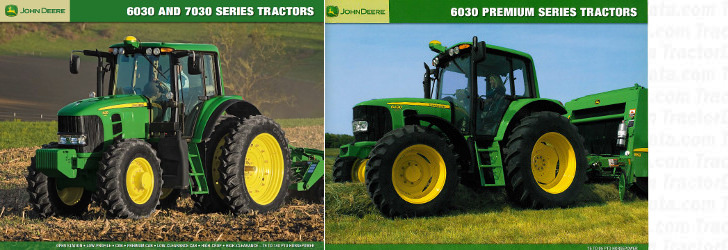

6330 Premium references literature
6030 and 7030 Series Tractors published in 2007, by John Deere
6030 Premium Series Tractors published in 2006, by John Deere
