John Deere 6330 Premium Transmission

John Deere 6330 Premium tractor photo
2007 - 2012
Model year
6030 Series
Series:6230 Premium6330 Premium6430 Premium
Transmissions overview
16-speed partial power shift
24-speed partial power shift
infinitely variable transmission
Transmission:John Deere PowrQuad Plus
Type:partial power shift
Gears:16 forward and reverse
Oil capacity:51.6 qts
48.8 L
Four gears (1-4) in four ranges (A-D) with reverser. Push-button power shifts between gears. Range shift lever is synchronized using foot or optional push-button hand clutch. Reverser lever provides power shuttle between forward and reverse.
With 18.4R38 rear tires.
6330 Premium PowrQuad Plus partial power shift speeds
Transmission:John Deere AutoQuad Plus
Type:partial power shift
Gears:24 forward and reverse
Oil capacity:52.8 qts
50.0 L
Four gears (1-4) in six ranges (A-F) with reverser. Similar to PowrQuad with added Auto mode. Auto mode automatically shifts gears to match load and throttle position.
With 18.4R38 rear tires. Reverse speeds slightly faster than forward.

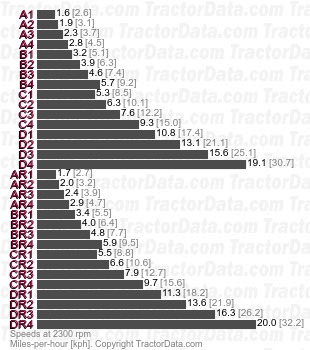

6330 Premium AutoQuad Plus partial power shift speeds
Transmission:John Deere IVT
Type:infinitely variable transmission
Gears:infinite forward and reverse
Oil capacity:63.8 qts
60.4 L

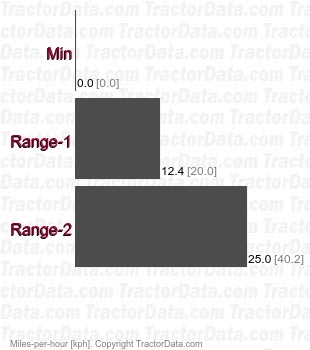

6330 Premium IVT infinitely variable transmission speeds
