Transmissions overview |
16-speed partial power shift |
24-speed partial power shift |
Transmission |
Transmission: | John Deere PowrQuad Plus
|
Type: | partial power shift
|
Gears: | 16 forward and reverse
|
Oil capacity: | 51.6 qts 48.8 L
|
Four gears (1-4) in four ranges (A-D) with reverser. Push-button power shifts between gears. Range shift lever is synchronized using foot or optional push-button hand clutch. Reverser lever provides power shuttle between forward and reverse. |

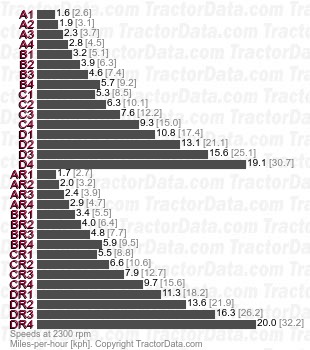

Speeds |
With 18.4R38 rear tires. |
|
Transmission |
Transmission: | John Deere AutoQuad Plus
|
Type: | partial power shift
|
Gears: | 24 forward and reverse
|
Oil capacity: | 52.8 qts 50.0 L
|
Four gears (1-4) in six ranges (A-F) with reverser. Similar to PowrQuad with added Auto mode. Auto mode automatically shifts gears to match load and throttle position. |
Speeds |
With 18.4R38 rear tires. Reverse speeds slightly faster than forward. |
|
