Tractors > CaseIH > Steiger 600 Quadtrac

CaseIH Steiger 600 Quadtrac Tests

CaseIH Steiger 600 Quadtrac tractor photo

2011 -

Articulated Crawler tractor

Series map:

Steiger 620 Quadtrac↑ 2014-2023

Steiger 550 Quadtrac

Steiger 600 Quadtrac

550.0hp

600.0hp

Steiger 535QT↓ 2008-2010

OCED Tractor Test 2049

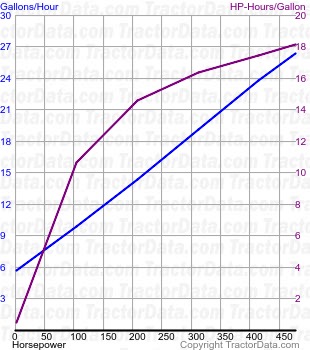

Steiger 600 Quadtrac fuel use from test 849

OCED Tractor Test 2049
Diesel 16-speed crawler November 15 - 19, 2012 Link: OCED Tractor Test 2049 file
PTO performance
Max power	535.88 hp 399.6 kW
Fuel use	27.9 gal/hour 105.6 l/hour
Power at rated engine speed	476.83 hp 355.6 kW
Fuel use	26.3 gal/hour 99.5 l/hour
Power at rated PTO speed	517.80 hp 386.1 kW
Fuel use	27.6 gal/hour 104.5 l/hour
Drawbar performance
Max power	476.39 hp 355.2 kW
Fuel use	29.7 gal/hour 112.4 l/hour
Gear 5 used for power test.
Max pull	56424 lbs 25593 kg
Gear 1 used for pull test.
