CaseIH Steiger 550 Quadtrac Tests

CaseIH Steiger 550 Quadtrac tractor photo
2011 -
Articulated Crawler tractor
OCED Tractor Test 2048

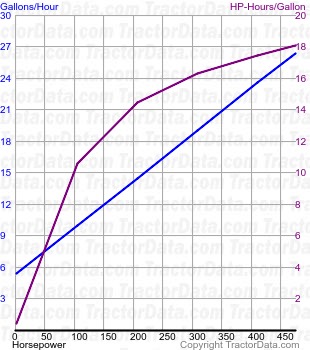

Steiger 550 Quadtrac fuel use from test 848
OCED Tractor Test 2048
Diesel 16-speed crawler
November 13 - 19, 2012
Link: OCED Tractor Test 2048 file
PTO performance
Max power:535.77 hp
399.5 kW
Fuel use:27.9 gal/hour
105.6 l/hour
Power at rated engine speed:474.47 hp
353.8 kW
Fuel use:26.3 gal/hour
99.5 l/hour
Power at rated PTO speed:517.43 hp
385.8 kW
Fuel use:27.7 gal/hour
104.8 l/hour
Drawbar performance
Max power:434.20 hp
323.8 kW
Fuel use:27.5 gal/hour
104.1 l/hour
Gear 4 used for power test.
Max pull:52446 lbs
23789 kg
Gear 1 used for pull test.
