Tractors > CaseIH > Steiger 500 Quadtrac

CaseIH Steiger 500 Quadtrac Tests



CaseIH Steiger 500 Quadtrac tractor photo
2011 - 2023
Model year
Articulated Crawler tractor
Series map:
Steiger 450 Quadtrac
Steiger 500 Quadtrac
Steiger 550 Quadtrac
450.0hp
500.0hp
550.0hp
OCED Tractor Test 2073

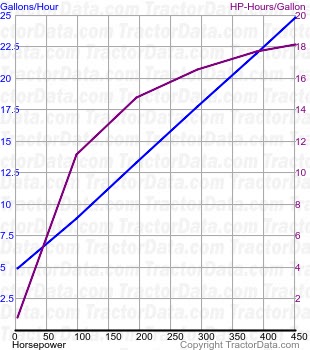

Steiger 500 Quadtrac fuel use from test 891
OCED Tractor Test 2073
Diesel 16-speed crawler
September 20 - 24, 2013
Link: OCED Tractor Test 2073 file
PTO performance
Max power504.60 hp
376.3 kW
Fuel use27.1 gal/hour
102.6 l/hour
Power at rated engine speed450.72 hp
336.1 kW
Fuel use24.8 gal/hour
93.9 l/hour
Power at rated PTO speed489.76 hp
365.2 kW
Fuel use26.4 gal/hour
99.9 l/hour
Drawbar performance
Max power384.77 hp
286.9 kW
Fuel use25.0 gal/hour
94.6 l/hour
Gear 4 used for power test.
Max pull50155 lbs
22750 kg
Gear 1 used for pull test.
