Tractors > CaseIH > Steiger 450 Quadtrac

CaseIH Steiger 450 Quadtrac Tests



CaseIH Steiger 450 Quadtrac tractor photo
2011 -
Articulated Crawler tractor
Series map:
Steiger 450 Quadtrac
Steiger 500 Quadtrac
450.0hp
500.0hp
OCED Tractor Test 2072

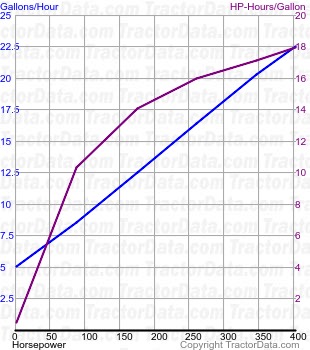

Steiger 450 Quadtrac fuel use from test 890
OCED Tractor Test 2072
Diesel 16-speed crawler
September 27 - October 3, 2013
Link: OCED Tractor Test 2072 file
PTO performance
Max power455.06 hp
339.3 kW
Fuel use24.1 gal/hour
91.2 l/hour
Power at rated engine speed402.48 hp
300.1 kW
Fuel use22.5 gal/hour
85.2 l/hour
Power at rated PTO speed433.32 hp
323.1 kW
Fuel use23.4 gal/hour
88.6 l/hour
Drawbar performance
Max power351.18 hp
261.9 kW
Fuel use22.9 gal/hour
86.7 l/hour
Gear 4 used for power test.
Max pull48019 lbs
21781 kg
Gear 1 used for pull test.
