John Deere 5525 Hi-Crop Engine



John Deere 5525 Hi-Crop tractor photo
2005 - 2008
High-Clearance tractor
Series map:
5525 Hi-Crop
91.0hp
Engine Detail
John Deere
turbocharged diesel
4-cylinder
liquid-cooled wet sleeve
Displacement276 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
EmissionsTier II
Power (gross)91 hp
67.9 kW
Air cleanerpaper and felt elements
Compression17.6:1
Rated RPM2400
Idle RPM825-2625
Firing order1-3-4-2
Starter volts12
Coolant capacity12 qts
11.4 L
Engine Oil

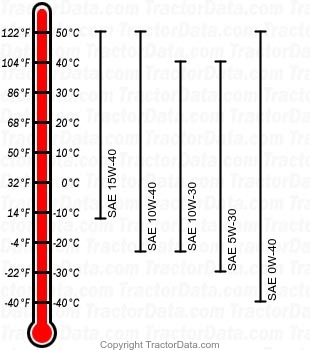

5525 Hi-Crop diesel engine oil chart
Oil capacity9 qts
8.5 L
