John Deere 5095MH Engine

John Deere 5095MH tractor photo
2008 - ????
High-Clearance tractor
5525 Hi-Crop
Engine Detail
John Deere PowerTech M 4045
turbocharged diesel
Displacement:276 ci
4.5 L
Bore/Stroke:4.19x5.00 inches
106 x 127 mm
Rated Power (EC 97/98):95 hp
70.8 kW
Air cleaner:dry
Rated RPM:2200
Torque:372 lb-ft
504.4 Nm
Torque RPM:1600
Starter volts:12
Coolant capacity:12 qts
11.4 L
Engine Oil

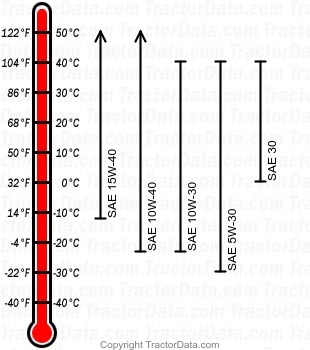

5095MH diesel engine oil chart
Oil capacity:8.8 qts
8.3 L
