Claas Arion 610
|
|
| Production | |
| Manufacturer | Claas |
| Row-Crop tractor | |
| Variants | |
| Arion 610 | deluxe model |
| Arion 610C | economy model |
| Claas Arion 610 Engine | |
| John Deere 6.8L 6-cyl diesel | |
| Fuel tank | 87.2 gal 330.1 L |
 Engine details ... | |
| Claas Arion 610 Transmission | |
| 24-speed partial power shift with power shuttle | |
 Transmission details ... |
| Claas Arion 610 Power | |
| Engine | 120 hp 89.5 kW |
| Mechanical | |
| Four-wheel drive | |
| Power steering | |
| Trailer brakes | pneumatic OptOptional |
| Cab standard with air-conditioning. | |

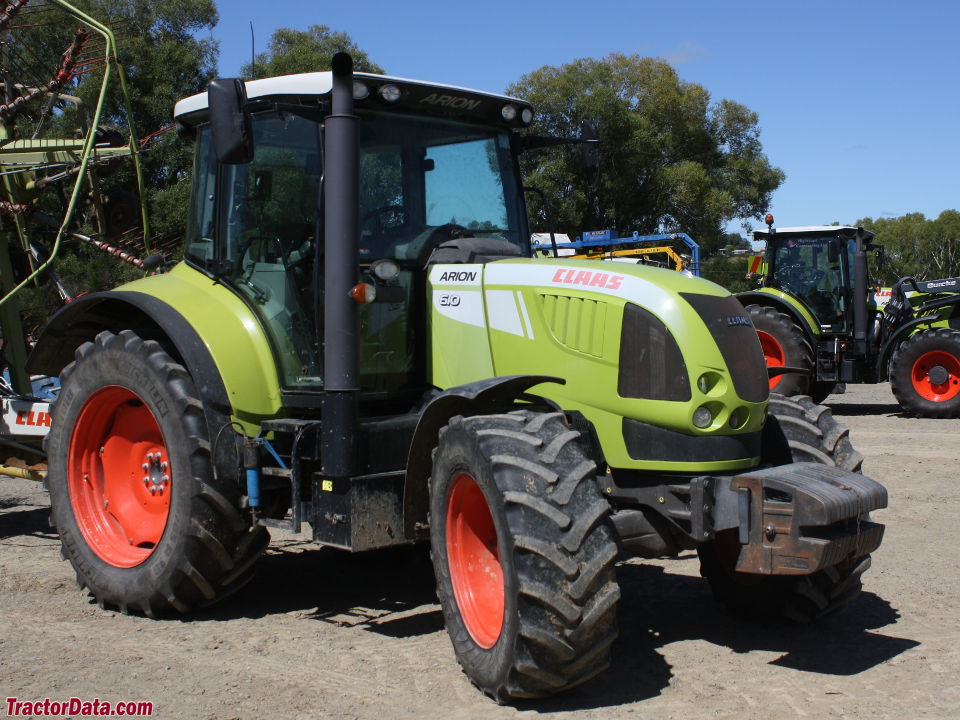

| Photos | |
 | |
 Claas Arion 610 photos... | |
| Hydraulics | |
| Type | load sensing |
| Pressure | 2901 psi 200.0 bar |
| Valves | 2 to 6 |
| Total flow | 29.1 gpm 110.1 lpm |
| Power Take-off (PTO) | |
| Rear PTO Type | 540/1000 |
| 540/540E/1000/1000E (optional) | |
| Dimensions & Tires | |
| Wheelbase | 111 inches 281 cm |
| Weight | 12610 lbs 5719 kg |
| Front tire | 14.9R28 |
| Rear tire | 18.4R38 |
 Full dimensions and tires ... | |
| References | |
 | |
| Arion published in 2007, by New Rules - The Arion By Claas | |
| Arion published in 2010, by Claas |
