Claas Xerion 3300
| | 2004 - 2012 |
| Xerion Series | | Four-wheel Drive (4WD) tractor |
|
| Production |
| Manufacturer: | Claas
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Claas Xerion 3300 Power |
| Engine: | 335 hp
249.8 kW
|
| Mechanical |
| Chassis: | 4x4 4WD
|
| Differential lock: | electro-hydraulic
|
| Steering: | four-wheel steering
|
| Brakes: | integrated hydraulic wet disc
|
| Cab: | Cab standard with air-conditioning.
|
| Transmission: | continuously variable transmission
|
 Transmission details ... |
| Capacity |
| Fuel: | 163.8 gal
620.0 L
|
| Hydraulic system: | 34.34 gal
130.0 L
|
| Hydraulics |
| Type: | load sensing
|
| Capacity: | 34.34 gal
130.0 L
|
| Pressure: | 2901 psi
200.0 bar
|
| | 3771 psi
260.0 bar (optional circuit)
|
| Valves: | 5
|
| Pump flow: | 29.1 gpm
110.1 lpm
|
| | 62.1 gpm
235.0 lpm (optional circuit)
|
| Total flow: | 50.19 gpm
190.0 lpm
|
| Tractor hitch |
| Rear Type: | IIIN
|
| Rear lift: | 25,850 lbs
11725 kg
|
| Front Hitch: | IIIN
|
| Front lift: | 15,740 lbs
7139 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Page information |
| Last update: | January 19, 2016
|
| Copyright: | Copyright 2021 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2021 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...

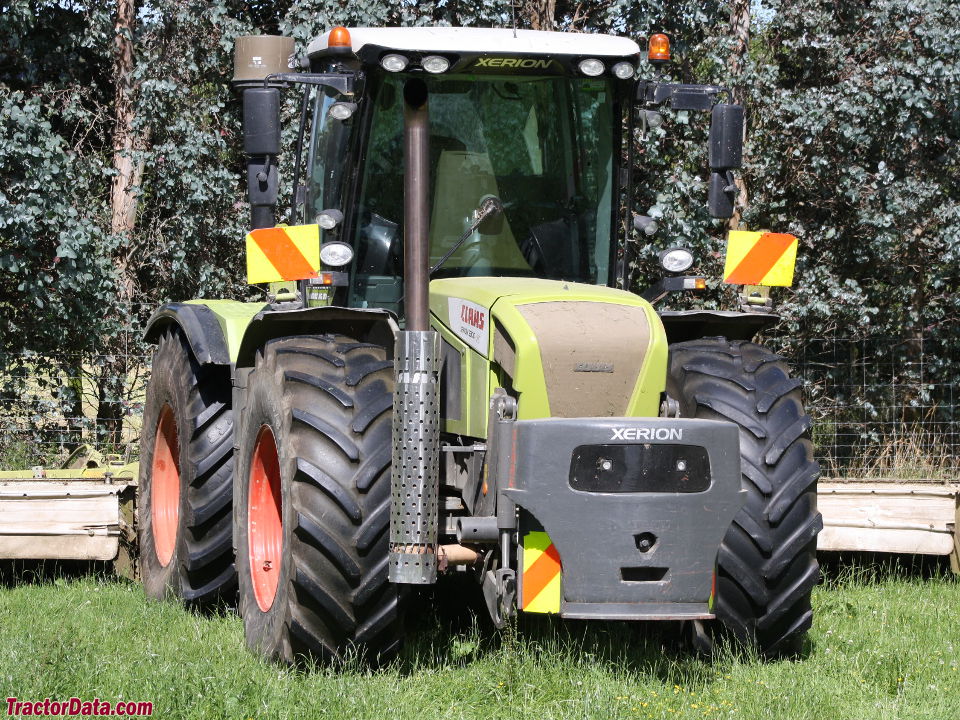

Claas Xerion 3300 photos...
