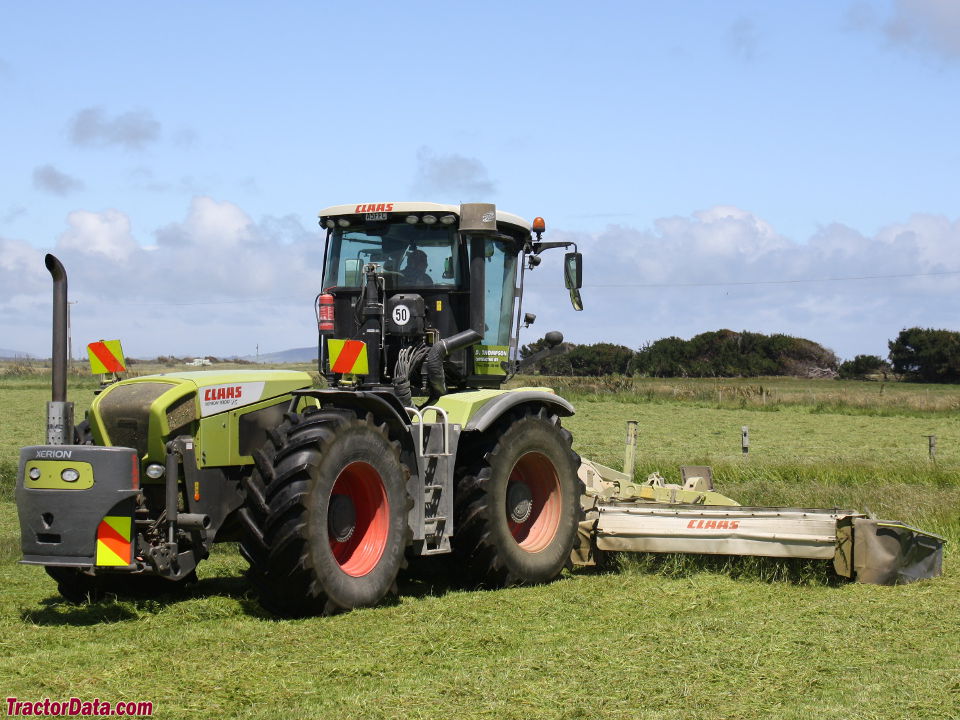

Claas Xerion 3300 Saddle Trac
| | 2004 - 2012 |
| Xerion Series | | Four-wheel Drive (4WD) tractor |
|
| Production |
| Manufacturer | Claas
|
| Four-wheel Drive (4WD) tractor |
| Claas Xerion 3300 Saddle Trac Power |
| Engine | 335 hp
249.8 kW
|
| Mechanical |
| Drive | 4x4 4WD
|
| Differential lock | electro-hydraulic
|
| Steering | four-wheel steering
|
| Integrated hydraulic wet disc brakes |
| Cab standard with air-conditioning. |
| Capacity |
| Fuel | 163.8 gal
620.0 L
|
| Hydraulic system | 34.34 gal
130.0 L
|
| Hydraulics |
| Type | load sensing
|
| Capacity | 34.34 gal
130.0 L
|
| Pressure | 2901 psi
200.0 bar
|
| | 3771 psi (optional circuit)
260.0 bar
|
| Valves | up to 5
|
| Pump flow | 29.1 gpm
110.1 lpm
|
| | 62.1 gpm (optional circuit)
235.0 lpm
|
| Total flow | 50.19 gpm
190.0 lpm
|
| Tractor hitch |
| Rear Type | III
|
| Rear lift | 25,850 lbs
11725 kg
|
| Front Hitch | III
|
| Front lift | 15,740 lbs
7139 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 1000
|
