B.F. Avery V
|
|
| Production | |
| Manufacturer | B.F. Avery |
| Row-Crop tractor | |
| Built in Louisville, Kentucky, USA | |
| B.F. Avery V Engine | |
| Hercules 1.1L 4-cyl gasoline | |
| Fuel tank | 1.75 gal 6.6 L |
 Engine details ... | |
| B.F. Avery V Transmission | |
| 3-speed unsynchronized gear | |
 Transmission details ... |
| B.F. Avery V Power | |
| Engine | 9 hp 6.7 kW |
| Plows | 1 (14-inch) |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station. |

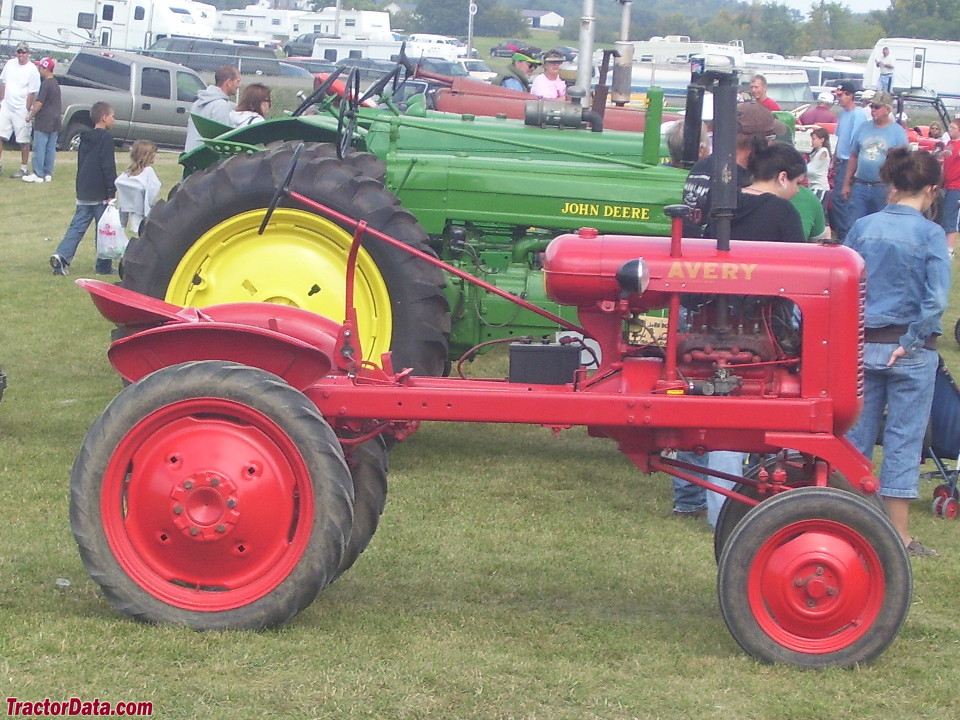

| Photos | |
 | |
 B.F. Avery V photos... | |
| Power Take-off (PTO) | |
| Rear PTO Type | 540 (1.125) |
| Dimensions & Tires | |
| Wheelbase | 74 inches 187 cm |
| Weight | 1612 lbs 731 kg |
| Front tire | 4.00-15 |
| Rear tire | 8-24 |
 Full dimensions and tires ... | |
| V Serial Numbers | |
| Location: | Serial number stamped into the tractor's frame. |
| 1946 | 1V005 |
| 1947 | 1V144 |
| 1948 | 2V577 |
| 1949 | 4V491 |
| 1950 | 5V501 |
| 1951 | 6V207 |
| 1952 | 6V422 |
| Final | 7V271 |
FAQ: How to read a serial number table. | |
| Belt Pulley | |
| Diameter | 6 inches 15 cm |
| Width | 5.5 inches 13 cm |
| RPM | 540 |
| Speed | 3100 ft/min 944.88 meters/min |
| References | |
 | |
| Farm Equipment Catalog published in 1950, by Montgomery Ward |
