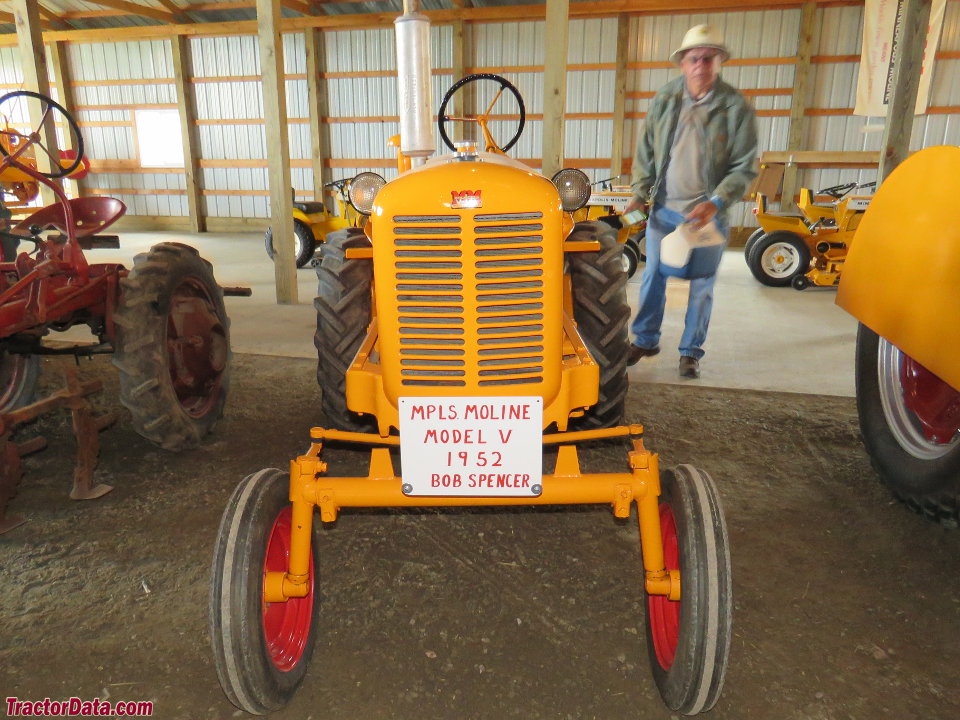

Minneapolis-Moline V
|
|
| Production | |
| Manufacturer | Minneapolis-Moline |
| Utility tractor | |
| Minneapolis-Moline V Engine | |
| Hercules 1.1L 4-cyl gasoline | |
| Fuel tank | 7 gal 26.5 L |
 Engine details ... | |
| Minneapolis-Moline V Transmission | |
| 3-speed unsynchronized gear | |
 Transmission details ... |
| Minneapolis-Moline V Power | |
| Plows | 1 |
| Mechanical | |
| Two-wheel drive | |
| Steering | manual |
| Open operator station. | |
| Power Take-off (PTO) | |
| Rear PTO Type | 540 |
| Dimensions & Tires | |
| Wheelbase | 74 inches 187 cm |
| Weight | 1710 lbs 775 kg |
| Front tire | 4.00x15 |
| Rear tire | 8x24 |
 Full dimensions and tires ... | |
| V Serial Numbers | |
| 1951 | 6V186 |
| 1952 | 6V422 |
FAQ: How to read a serial number table. | |
| Belt Pulley | |
| Diameter | 6 inches 15 cm |
| Width | 5.5 inches 13 cm |
| RPM | 1990 |
| Speed | 3100 ft/min 944.88 meters/min |
| References | |
 | |
| Model V All Purpose Tractors published by Minneapolis-Moline | |
| Sales Manual published in 1952, by Minneapolis-Moline |
