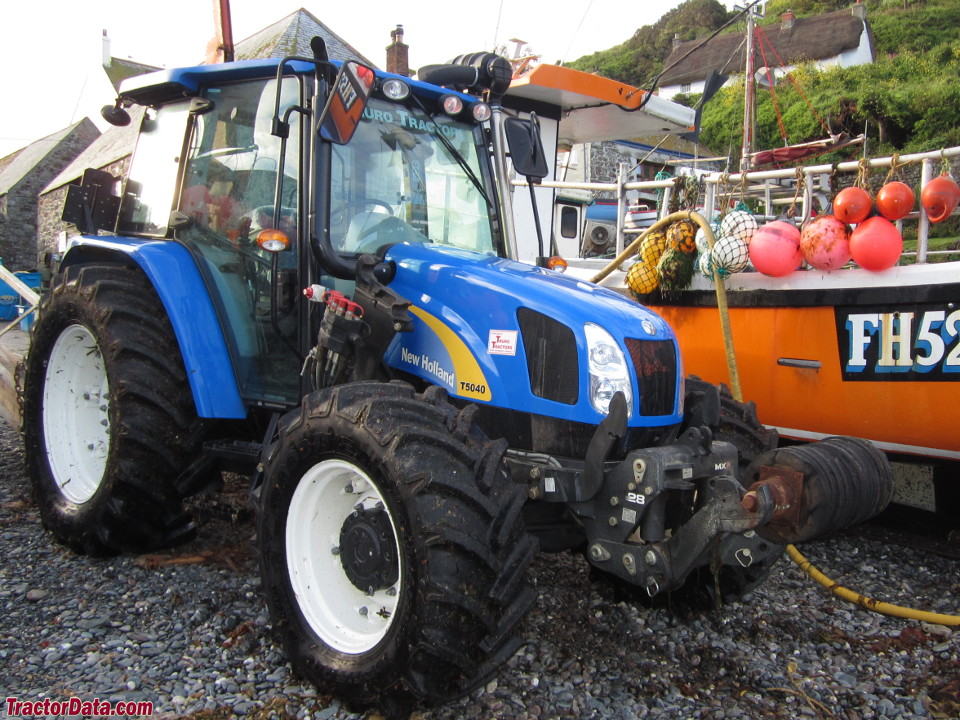

New Holland T5040
| 2008 - 2013 |
T5000 Series | Utility tractor |
|
Production |
Manufacturer: | New Holland
|
Type: | Utility tractor
|
Factory: | Jesi, Italy
|
New Holland T5040 Power |
Engine (gross): | 85 hp 63.4 kW
|
PTO (claimed): | 70 hp 52.2 kW
|
Drawbar (tested): | 61.2 hp 45.6 kW
|
PTO (tested): | 73.2 hp 54.6 kW
|
power test details ... |
Mechanical |
Chassis: | 4x2 2WD
|
| 4x4 MFWD 4WD (optional)
|
Differential lock: | mechanical rear standard
|
| optional electrohydraulic front and rear
|
Steering: | hydrostatic power
|
Brakes: | hydraulic wet disc
|
Cab: | Flat deck platform with ROPS. Cab optional with heat and air-conditioning.
|
Transmissions: | 12-speed mechanical shuttle
|
| 12-speed power shuttle
|
| 20-speed mechanical shuttle
|
| 24-speed power shuttle
|
Transmission details ... |
Hydraulics |
Type: | open center
|
Pressure: | 2,871 psi 198.0 bar
|
Rear valves: | 2 to 3 (open or closed center)
|
Mid valves: | 0 to 2
|
Pump flow: | 16.1 gpm 60.9 lpm
|
Steering flow: | 10.4 gpm 39.4 lpm
|
Tractor hitch |
Rear Type: | II
|
Control: | mechanical lower-link draft sensing
|
Rear lift (at 24"/610mm): | 5,475 lbs 2483 kg
|
| 6,805 lbs 3086 kg (optional)
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Clutch: | mechanical
|
| electrohydraulic optional
|
Rear RPM: | 540/1000 (1.375)
|
Engine RPM: | 540@2199 1000@2261
|
Electrical |
Ground: | negative
|
Charging system: | alternator
|
Charging amps: | 120
|
Battery CCA: | 960
|
Battery volts: | 12
|
