Production | |
Manufacturer | New Holland |
Four-wheel Drive (4WD) tractor | |
Built in Fargo, North Dakota, USA |
New Holland T9050 Engine | |
Iveco 12.9L 6-cyl diesel | |
Fuel tank | 300 gal 1135.5 L |
Engine details ... |
New Holland T9050 Transmission | |
16-speed full power shift | |
Transmission details ... |
New Holland T9050 Power | |
Engine | 485 hp 361.7 kW |
PTO (claimed) | 429 hp 319.9 kW |
Drawbar (tested) | 400.38 hp 298.6 kW |
PTO (tested) | 498.35 hp 371.6 kW |
Performance test details ... |
Mechanical | |
Four-wheel drive | |
Steering | hydrostatic power |
Integral hydraulic wet disc brakes | |
Cab standard with heat and air-conditioning |
Photos | |

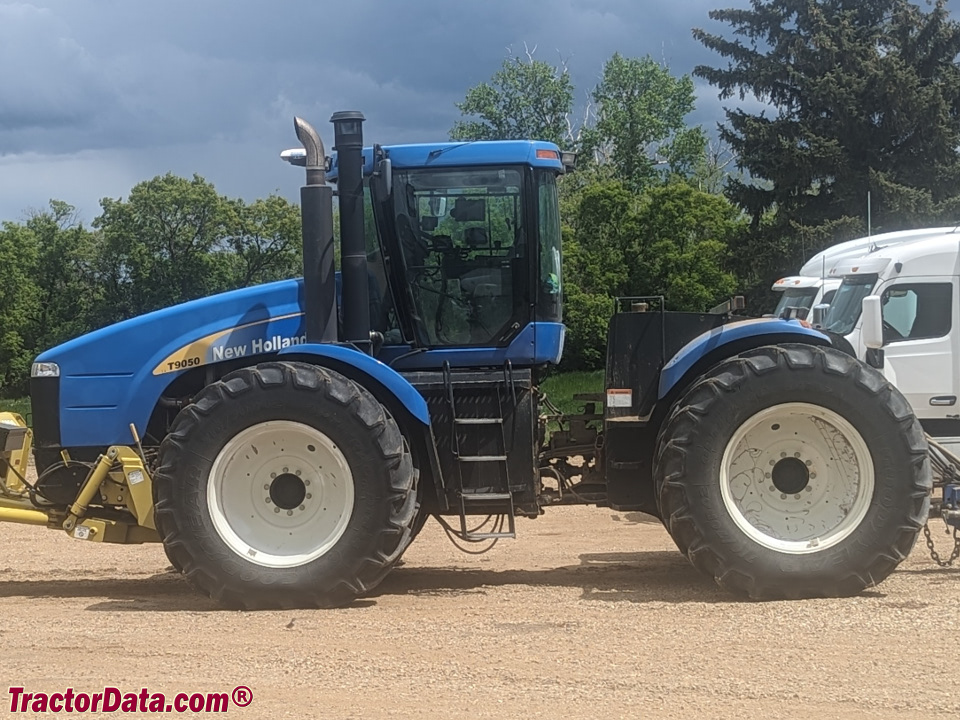

New Holland T9050 photos... |
Hydraulics | |
Type | closed center load sensing (CCLS) |
Pressure | 2000 psi 137.9 bar |
Valves | 4 to 9 |
Pump flow | 33 gpm 124.9 lpm |
Total flow | 40 gpm 151.4 lpm |
  | 55 gpm (optional) 208.2 lpm |
  | 90 gpm (optional MegaFlow) 340.7 lpm |
Tractor hitch | |
Rear Type | IVN (optional) |
Rear lift (at 24"/610mm) | 19,620 lbs 8899 kg |
Power Take-off (PTO) | |
Rear PTO | independent |
Rear PTO Type | 1000 (optional) |
Dimensions & Tires | |
Wheelbase | 154 inches 391 cm |
Weight | 43,680 lbs 19813 kg |
Front tire | 710/70R42 |
Rear tire | 710/70R42 |
Full dimensions and tires ... |
Electrical | |
Ground | negative |
Charging system | alternator |
Charging amps | 175 |
Batteries | 2 |
Battery volts | 12 |
Battery AH | 1000 |
