New Holland T9040

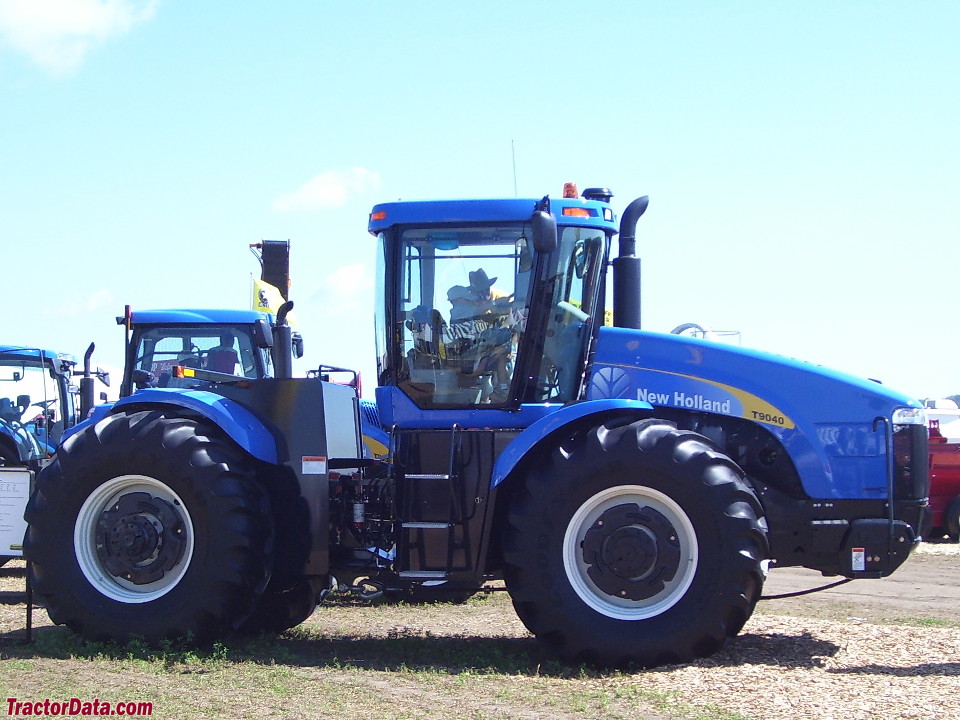

New Holland T9040 tractor photo
2007 - 2010
T9000 Series
Four-wheel Drive (4WD) tractor
TJ430
Series:T9030T9040T9050
T9.505
Production
Manufacturer:New Holland
Type:Four-wheel Drive (4WD) tractor
Factory:Fargo, North Dakota, USA
New Holland T9040 Power
Engine:435 hp
324.4 kW
PTO (claimed):379 hp
282.6 kW
Drawbar (tested):351.28 hp
261.9 kW
PTO (tested):438.97 hp
327.3 kW
power test details ...
New Holland T9040 Engine
Iveco 12.9L 6-cyl diesel
Fuel tank:300 gal
1135.5 L
Engine details ...
Mechanical
Chassis:4x4 articulated 4WD
Steering:hydrostatic power
Brakes:integral hydraulic wet disc
Cab:Cab standard with heat and air-conditioning
Transmission:16-speed full power shift
Transmission details ...
Hydraulics
Type:closed center load sensing (CCLS)
Pressure:2000 psi
137.9 bar
Valves:4 to 9
Pump flow:33 gpm
124.9 lpm
Total flow:40 gpm
151.4 lpm
 55 gpm
208.2 lpm (optional)
 90 gpm
340.7 lpm (optional MegaFlow)
Tractor hitch
Rear Type:IVN (optional)
Rear lift (at 24"/610mm):19,620 lbs
8899 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:1000 (optional)
Dimensions & Tires
Wheelbase:154 inches
391 cm
Weight:41,605 lbs
18872 kg
Front tire:710/70R42
Rear tire:710/70R42
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:175
Batteries:2
Battery volts:12
Battery AH:1000
