Tractors > Challenger > MT755C

Challenger MT755C



Challenger MT755C tractor photo
2009 - 2011
MT700C Series
Agricultural Crawler tractor
Series map:
MT755C
MT765C
301.0hp
320.0hp
Production
ManufacturerChallenger (a part of AGCO)
Agricultural Crawler tractor
Built in Jackson, Minnesota, USA
Original price was $228,190 in 2009
Challenger MT755C Engine
Caterpillar 8.8L 6-cyl
Fuel tank118 gal
446.6 L
 208 galOptOptional
787.3 L
Engine details ...
Challenger MT755C Transmission
16-speed full power shift
Transmission details ...
Challenger MT755C Power
Engine (gross)301 hp
224.5 kW
PTO (claimed)245 hp
182.7 kW
Drawbar (tested)213.58 hp
159.3 kW
PTO (tested)315.95 hp
235.6 kW
Performance test details ...
Mechanical
Drivecrawler
Steeringspeed sensitive differential
Trailer brakeshydraulic OptOptional
Cab standard with air-conditioning.
Photos
No photos of the Challenger MT755C are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeclosed center pressure-flow compensated
Pressure2900 psi
200.0 bar
Valves4 to 6
Pump flow36 gpm
136.3 lpm
Total flow43.5 gpm
164.6 lpm
 59 gpmOptOptional
223.3 lpm
Tractor hitch
Rear TypeIII/IIIN
Rear lift16,000 lbs
7257 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type1000 (1.75)
Dimensions & Tracks
Wheelbase96 inches
243 cm
Weight31,075 lbs
14095 kg
Tracks
Full dimensions and tracks ...

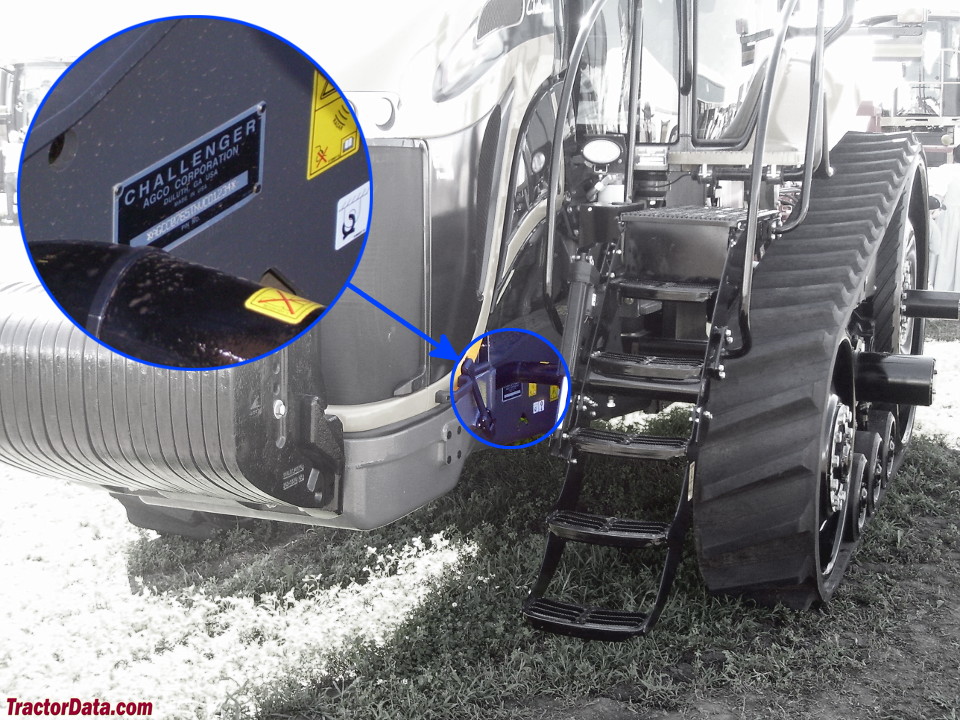

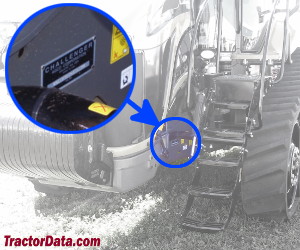

MT755C Serial Number Location
Challenger MT755C serial number location
Serial number plate on the main front left side of the tractor frame.
Electrical
Groundnegative
Charging systemalternator
Charging amps185
Batteries2
Battery CCA1000
Battery volts12
