Iseki TA325

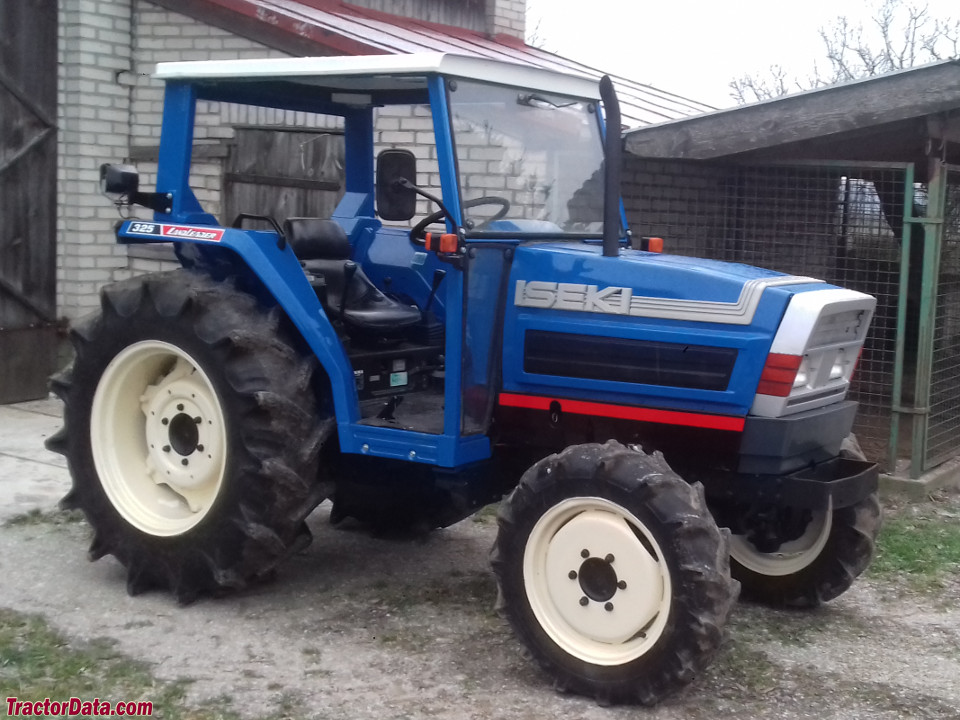

Iseki TA325 tractor photo
1987 - 1990
Landleader TA5 Series
Compact Utility tractor
Series map:
TA295
TA325
TA345
21.3kw
23.6kw
25.0kw
Production
ManufacturerIseki
Compact Utility tractor
Variants
TA325F4WD
Iseki TA325 Engine
Isuzu 1.5L 4-cyl diesel
Fuel tank11.1 gal
42.0 L
Engine details ...
Iseki TA325 Power
Engine31.6 hp
23.6 kW
Mechanical
Four-wheel drive
Open operator station. Cab optional.
Tractor hitch
Rear TypeI
Power Take-off (PTO)
Rear RPM540 (1.375)
Engine RPM564@2800
705@2800
837@2800
1308@2800
Dimensions & Tires
Wheelbase73.6 inches
186 cm
Weight3483 lbs
1579 kg
Front tire8-18
Rear tire13.6-26
Full dimensions and tires ...
Electrical
Groundnegative
Battery volts12
References
TA325 references literature
Landleader TA295/TA325 published in 1990, by Iseki
