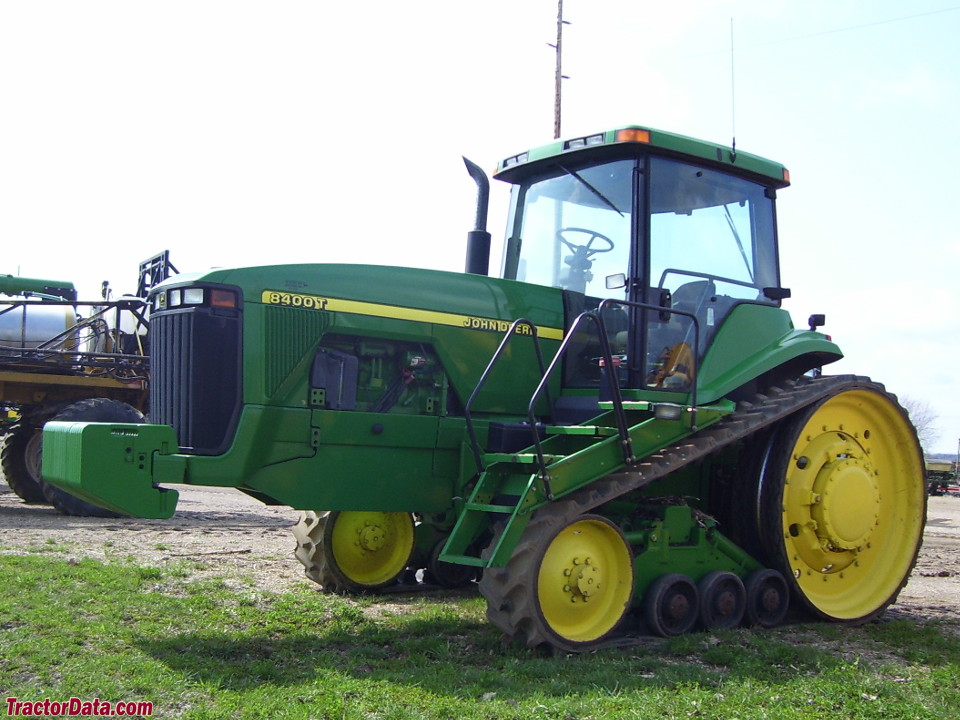

John Deere 8400T
1997 - 1999
8000/8000T Series Agricultural Crawler tractor
Series map:
8300T
8400T
222.2hp*
250.0hp*
*Estimated engine power for comparison only.
Production
Manufacturer John Deere
Agricultural Crawler tractor
Built in Waterloo, Iowa, USA
Variants
8400 wheeled tractor
8400T crawler tractor
John Deere 8400T Power
PTO (claimed) 225 hp167.8 kW
Drawbar (tested) 195.75 hp146.0 kW
PTO (tested) 255.16 hp190.3 kW
Performance test details ...
Mechanical
Drive crawler
Steering hydrostatic power
Hydraulic wet disc brakes
CommandView Cab standard
Capacity
Fuel 130 gal492.1 L
Hydraulic system 65 gal246.0 L
Hydraulics
Type pressure/flow compensated (PFC)
Capacity 65 gal246.0 L
Pressure 2900 psi200.0 bar
Valves 3 to 5
Pump flow 30 gpm113.6 lpm
  38 gpm (optional)143.8 lpm
Tractor hitch
Rear Type III/IIIN
Rear lift 15,650 lbs7098 kg
Power Take-off (PTO)
Rear PTO independent
Rear PTO Type 1000
Electrical
Ground negative
Charging system alternator
Charging amps 140
Batteries 2
Battery volts 12
Questions
I am attempting to finish the fall harvest and one is doing the ripping for our fall tillage. My question to you, if you are the person to ask is where is the transmission / hydraulic dip stick on the 8400t john deere tractor? I have not been able to find a picture in the manual that came with the tractor that we purchased used a few years ago.
Looking at the manual it appears there is not a dipstick. It looks like a sightglass just to the left of the rear PTO shaft.
Email: Peter@TractorData.com
References
8000/8000T Series Tractors Product Information Handbook published in 1998, by John Deere
