Ford 8870 Tests

Ford 8870 tractor photo
1993 - 2002
70 Genesis Series
Row-Crop tractor
Series map:
OCED Tractor Test 1647

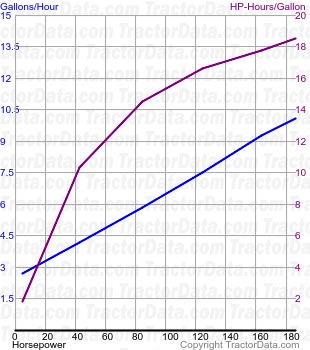

8870 fuel use from test 220
OCED Tractor Test 1647
Diesel 16-speed 4WD
May 1996 - July 1996,
Link: OCED Tractor Test 1647 file
PTO performance
Max power200.6 hp
149.6 kW
Fuel use10.0 gal/hour
37.9 l/hour
Power at rated engine speed185.9 hp
138.6 kW
Fuel use10.1 gal/hour
38.2 l/hour
Power at rated PTO speed200.2 hp
149.3 kW
Fuel use10.2 gal/hour
38.6 l/hour
Drawbar performance
Max power166.3 hp
124.0 kW
Fuel use10.4 gal/hour
39.4 l/hour
Gear 9 used for power test.
Max pull18550 lbs
8414 kg
Gear 5 used for pull test.
